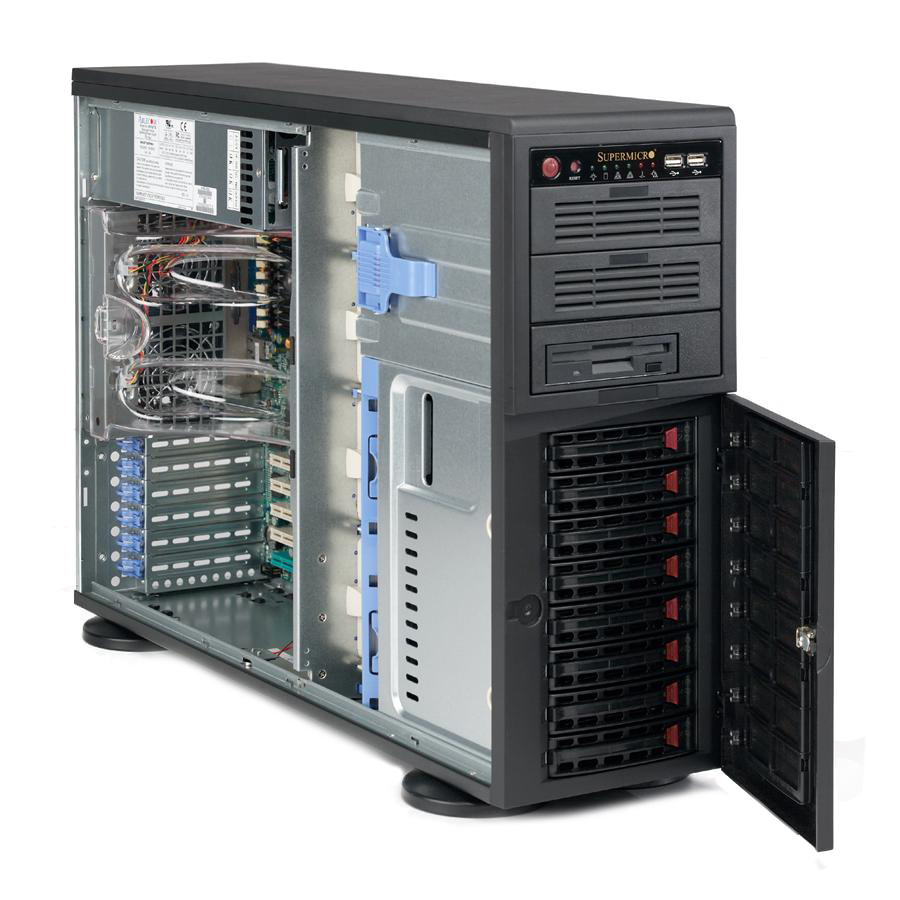

Supermicro SuperChassis 743TQ-650B (Black)

CSE-743TQ-650B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description


Product SKUs

CSE-743TQ-650	SuperChassis 743TQ-650 (Beige)
CSE-743TQ-650B	SuperChassis 743TQ-650B (Black)



Form Factor

4U chassis support for max. motherboard size - 12" x 13" E-ATX


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Width	7.0" (178mm)
Height	17.8" (452mm)
Depth	25.5" (648mm)
Gross Weight	56 lbs (25.4kg)
Available Colors	Beige, Black


Expansion Slots

7x Full-height, Full-length PCI expansion slots


Drive Bays

Hot-swap	8x 3.5" SAS / SATA Hot-swap Drive Bays SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)	2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For 3.5" Drive


SAS / SATA Backplane

SAS / SATA Hard Drive Backplane w/AMI MG9072


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED
Ports	2x USB Ports


System Cooling

Fans	4 5000 RPM Hot-swap PWM Cooling Fans 2 5000 RPM Hot-swap Rear Exhaust Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

650W Redundant-Cooling AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage	100 - 240V, 50 - 60Hz, 11 - 5 Amp
DC Output	5V + 3.3V ≤ 160W
+5V	30.0 Amp
+5V standby	4.0 Amp
+12V	46.0 Amp
-12V	0.6 Amp
+3.3V	30.0 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-743TQ-650 CSE-743TQ-650B	1 1	4U Chassis (Beige) 4U Chassis (Black)
Backplane	CSE-SAS-743TQ	1	SAS / SATA Hard Drive Backplane
Cable(s)	CBL-0044L CBL-0087 CBL-0084 CBL-0157L CBL-0216L	4 1 1 1 4	SATA Cable (2 Ft, Amphenol) Front Panel Ribbon Cable 6" Split Converter Cable 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives) 4 to 4-pin middle fan power extension cable, 200mm (PWM)
Drive Tray(s)	CSE-PT17(B) CSE-SAS-743TQ	8 1	Hot-swappable drive tray (B = Black) SAS / SATA Hard Drive Backplane
Fan(s)	FAN-0074L4 FAN-0082L4	4 2	80x38mm 4-pin PWM (middle) Fan 80x38mm 4-pin PWM fan assembly
Power Supply	PWS-0056	1	SP650-RP 650W Redundant-Cooling Power Supply
Air Shroud	MCP-310-48002-0N	1	SC743 Intel DP X8.X7 PC Air Shroud [ Manual ]


Optional Parts List

	Part Number	Qty	Description
Cable	CBL-0157L	-	8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives)
Cable	CBL-0286L	-	4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM)
Fan(s)	FAN-0091L4 FAN-0103L4 FAN-0104L4	- - -	92X38mm 4-pin PWM fan 92x25mm 4-pin PWM fan 80x25mm 4-pin PWM fan
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Mounting Rails	CSE-PT26L-B	-	4U Chassis Rail Kit (Includes Side Handles) (B = Black)
Peripheral Drives	DVM-LITE-DVDRW24-HBT	-	Black LITE-ON 5.25" 24X DVD-RW SATA Drive
Adaptor HDD carrier	MCP-220-00080-0B	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
