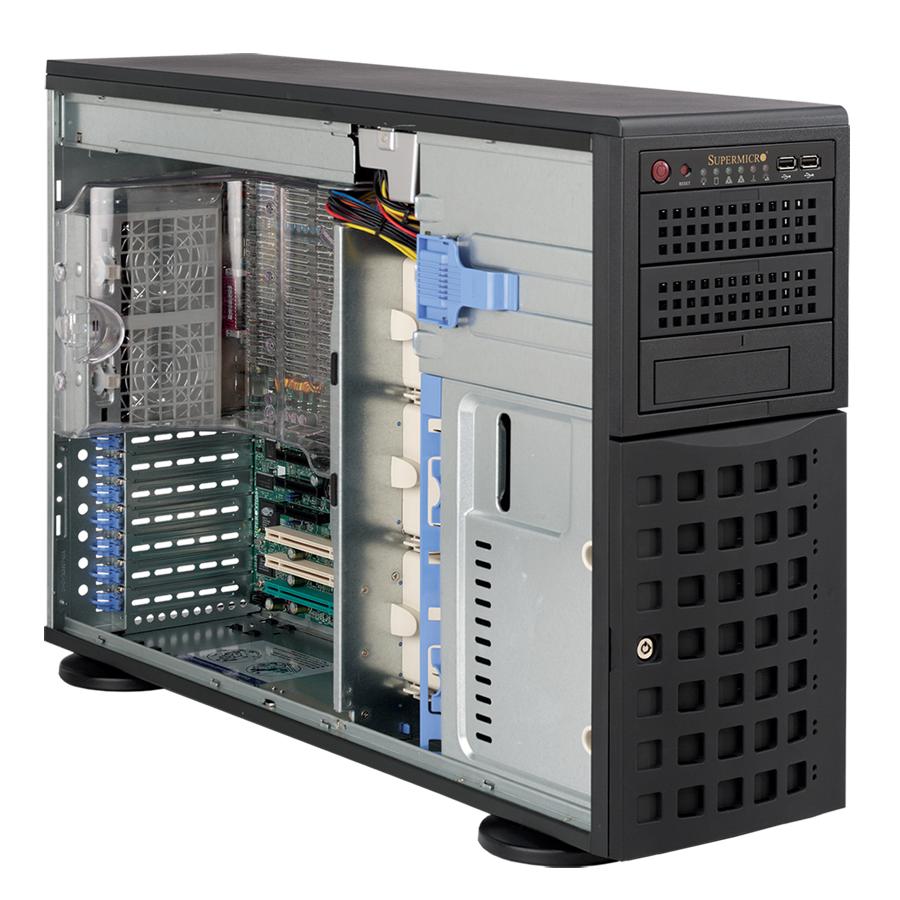

Supermicro SuperChassis 745TQ-800B (Black)

CSE-745TQ-800B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-745TQ-800	SuperChassis 745TQ-800 (Beige)
CSE-745TQ-800B	SuperChassis 745TQ-800B (Black)


Form Factor

Tower / 4U chassis support for max. motherboard size - 13.68" x 13" (34.7cm x 33cm)


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	17.2" (437mm)
Width	7.0" (178mm)
Depth	25.5" (648mm)
Gross Weight	58 lbs (26.3kg)
Available Colors	Beige, Black


Expansion Slots

7x PCI expansion slots


Drive Bays

Hot-swap	8x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)	2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive


SAS / SATA Backplane

SAS / SATA Hard Drive Backplane with SES2


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED
Ports	2x USB Ports


System Cooling

Fans	3x 5000 RPM Hot-swap PWM Cooling Fans 2x 5000 RPM Hot-swap Rear Exhaust PWM Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

800W AC power supply w/ PFC
AC Voltage	100 - 240V, 50-60Hz, 10-4 Amp
+5V standby	4 Amp
+12V	66 Amp
With Power Distributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed China - CCC Mark Europe/CE Mark EN 60950/IEC 60950-Compliant Germany - TUV Certified


Standard Parts List

	Part Number	Qty	Description
SC745TQ-800 Chassis	CSE-745TQ-800 CSE-745TQ-800B	1 1	4U Chassis (Beige) 4U Chassis (Black)
Bezel Filter	-	1	Front Bezel Filter
Cable(s)	CBL-0044L CBL-0084 CBL-0087 CBL-0157L CBL-0160L CBL-0216L	4 1 1 1 1 1	SATA Cable (2 Ft, Amphenol) 6" Split Converter Cable Front Panel Ribbon Cable 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives) Power Cord 4 to 4-pin middle fan power extension cable, 200mm (PWM)
Fan(s)	FAN-0074L4 FAN-0082L4	3 2	5000 RPM Hot-swap PWM Cooling Fan 5000 RPM Hot-swap Rear Exhaust PWM Fan
Hard Drive	CSE-PT17(B) CSE-SAS-743TQ	8 1	1" Hard Drive Carrier Trays (B = Black) SAS / SATA Hard Drive Backplane with AMI MG9072 Chip [ Manual ]
Power Supply	PWS-801-1R PDB-PT745-8824 CSE-PT745-PDN24 CSE-PT0130L	1 1 1 1	SP801-1R 800W Power Supply (Redundant) SC745 24-pin redundant power distributor Power Supply Backplane Dummy Power Cover
Air Shroud	MCP-310-48001-0N	1	SC745 Intel DP X8.X7 PC Air Shroud [ Manual ]


Optional Parts List

	Part Number	Qty	Description
Cable(s)	CBL-0153L	-	6pin GPU power extension from PDB 2x big 4pin, 16cm
Cable Management Arm	MCP-290-00073-0N	-	Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Mounting Rails	CSE-PT26L-B	-	4U Chassis Rail Kit (Includes Side Handles) (B = Black)
LCD Module	MCP-220-00095-0B	-	Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
Add-on Card Dummy	MCP-240-00096-0N	-	GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
Rear Exhaust Fan	MCP-320-00046-0N-KIT MCP-320-00047-0N-KIT	- -	Rear fan kit(8.2K RPM fan) for SC747B / 835X / 836BH Rear fan kit(5K RPM fan) for SC745B / 835X / 836BH
Peripheral Drives	DVM-LITE-DVDRW24-HBT	-	BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
HDD Tray Converter	MCP-220-00080-0B	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
