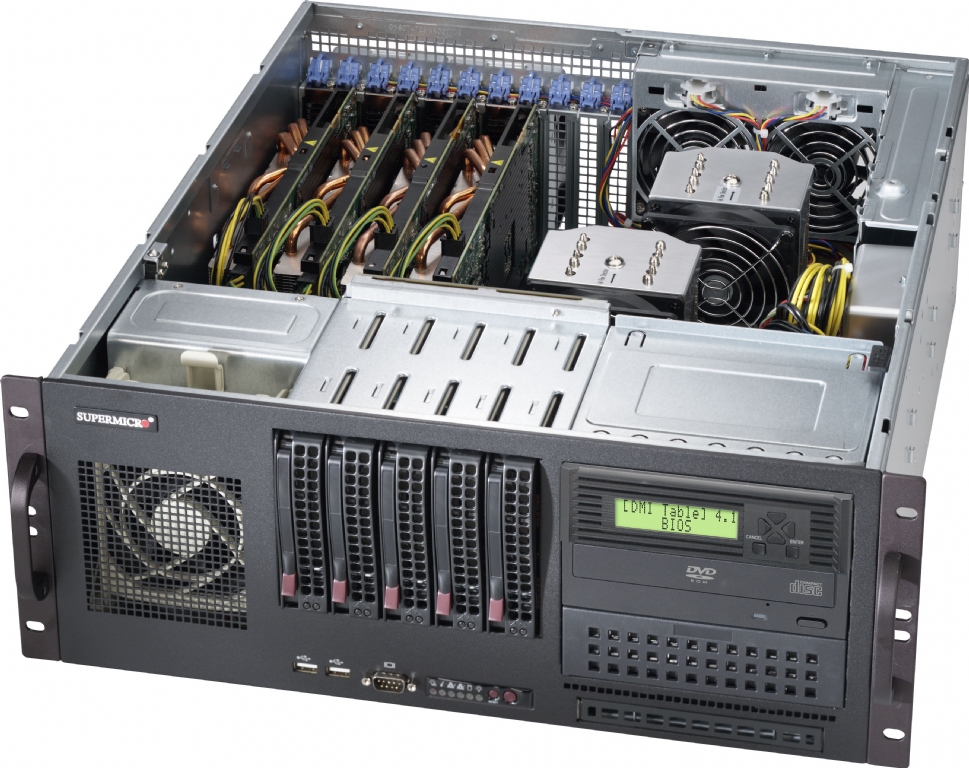

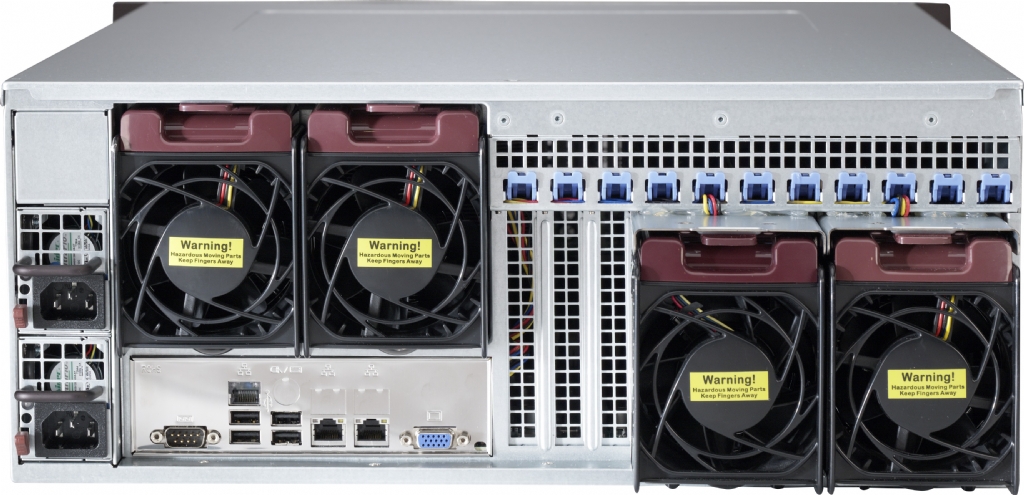

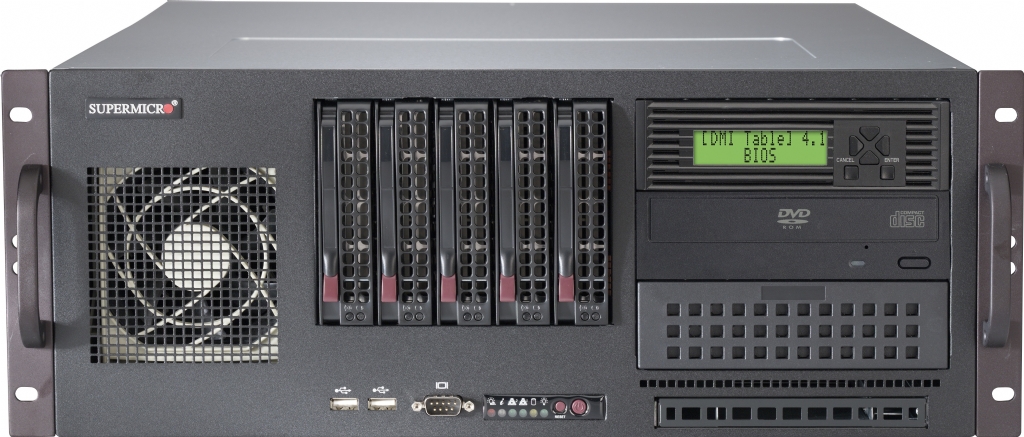

Supermicro SuperChassis 842XTQ-R606B (Black)

CSE-842XTQ-R606B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-842XTQ-R606B	SuperChassis 842XTQ-R606B


Form Factor

4U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" E-ATX/ATX/MicroATX


Processor Support

Dual and Single Intel® and AMD processors


Dimensions

Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	20.5" (521 mm)
Gross Weight	46 lbs (20.87 kg)
Packaging (W x H x L)	26.4" (671 mm) x 13.8" (351 mm) x 31.5" (800 mm)
Available Color	Black


Expansion Slots

7 full-height & full-length expansion slot(s) 4 full-height & half-length expansion slot(s)


Drive Bays

5 x 3.5" hot-swap SAS/SATA


Backplane

5-port 4U SC842 rackmount chassis SAS backplane (w/ enclosure management), support up to 5x 3.5-inch SAS/SATA HDD


Peripheral Drives

3 x standard 5.25" drive bay


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED
Ports	2x USB 2.0 Port(s) 1x Com Port(s)


Motherboard (for CSE- 842XTQ-R606B)

X9DRX+-F	X10DRX
X11SSQ	X11SSQ-L
X11DPL-i


Servers (for CSE- 842XTQ-R606B)

6047R-TXRF	6048R-TXR

Systems Cooling

Fans	1 x 9cm hot-swap cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud


System Monitoring

Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40
Power Efficiency	94%
Total Output Power and Input	600W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	220 x 54.5 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 50A / Min: 0.5A (100Vac - 240Vac)
+5Vsb	Max: 3A / Min: 0A
Power Distributor	PDB-PT842-8824 O/P: 12V/92A +5V Max: 30A +3.3V Max: 28A -12V Max: 0.6A
Certification	Platinum Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A TUV/CB UL/CUL


Standard Parts List

	Part Number	Qty	Description
HD Backplane	BPN-SAS-842TQ	1	5-port 4U SC842 rackmount chassis SAS backplane (w/ enclosure management), support up to 5x 3.5-inch SAS/SATA HDD
Cable(S)	CBL-0044L	5	SATA,INT,FLAT,57.7CM,26AWG
Cable(S)	CBL-0084L	1	CBL,FRONT CNTL,SPLIT,16 PIN,W/CONVERTER HEAD,15CM,26AWG
Cable(S)	CBL-0087	1	CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S)	CBL-0160L	2	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(S)	CBL-0286L	2	4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG
Cable(S)	CBL-0336L	1	4 pin to 4 pin MIDDLE FAN POWER EXTENSION (PWM) 57CM,24AWG
Fan(s)	FAN-0082L4	2	80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Fan(s)	FAN-0097L4	1	92x92x38 mm, 5K RPM, 4-pin PWM w/ Housing for SC842
Drive Tray(s)	MCP-220-00075-0B	5	Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor	PDB-PT842-8824	1	Power Distributor for SC842
Power Supply & Accessory	PWS-606P-1R	2	1U 600W Redundant Short Depth High Efficiency Power Supply


Optional Parts List

	Part Number	Qty	Description
Cable	CBL-0153L	-	6pin GPU Power Adapter Cable from PDB 2x big 4pin, 16cm
LCD	MCP-220-00095-0B	-	Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
Short Rail	MCP-290-00058-0N	-	Short rail set, quick release, 19.6"~26.9" Extendable Length
Rail	MCP-290-00057-0N	-	Rail set, quick/quick, default for 4U 17.2
Front Bezel	MCP-210-84201-0B	-	Black 4U Plastic Front Bezel Assembly (w/ Lock) for SC842
Add-on Card Holder (11 slots)	MCP-290-74702-0N	-	GPU Card Holder (11 slots) for SC747TQ, SC842
Mobile Rack	CSE-M28SACB	-	Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD with fan module,HF,RoHS/REACH
