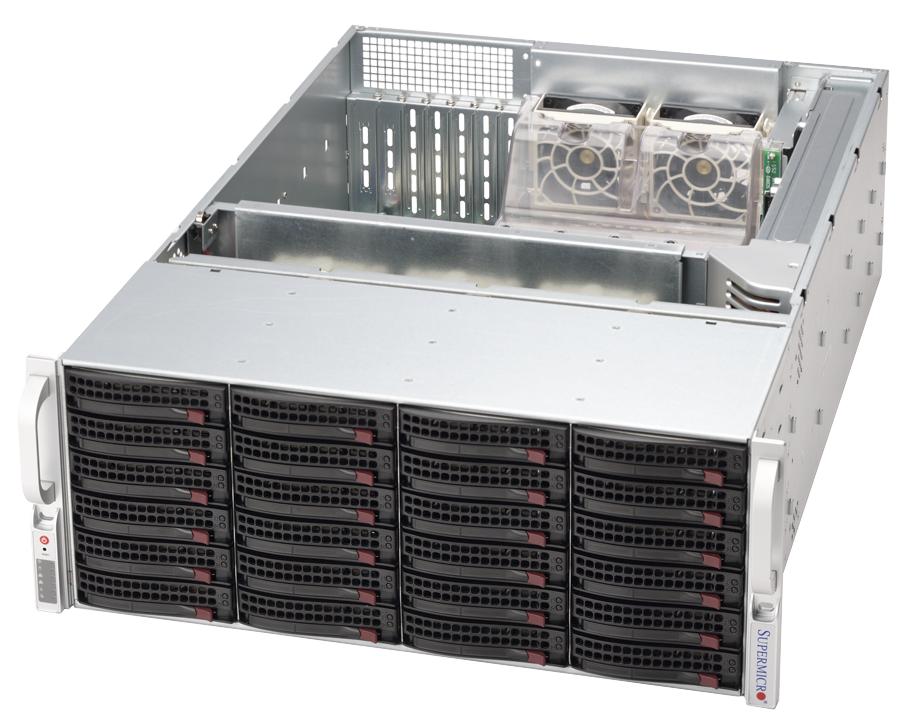

Supermicro SuperChassis 846TQ-R900B (Black)

CSE-846TQ-R900B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-846TQ-R900B	SuperChassis 846TQ-R900B (Black)


Form Factor

4U chassis support for motherboards up to size 13.68" x 13", E-ATX


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	7" (178mm)
Width	17.2" (437mm)
Depth	26" (660mm)
Gross Weight	75 lbs (34.0kg)
Available Colors	Black


Expansion Slots

7x PCI expansion slots


Drive Bays

Hot-swap	24x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended
Optional	2x Fixed Internal Hard Drive Bays OR 1x Fixed Internal Hard Drive Bay and 1x DVD-ROM Drive or Floppy Drive


Backplane

4U Direct Attached Backplane, features: • 3Gb support • SES-2 Enclosure Management Support • SAS/SATA support • 24 SATA connectors


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED


System Cooling

Fans	3x 5000 RPM Hot-swap PWM Cooling Fans 2x 5000 RPM Hot-swap Rear Exhaust PWM Fans


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply & Power Distributor

900W (1 + 1) Redundant AC to DC power supply w/ PFC
AC Voltage	100 - 240V, 60-50Hz, 11-4.5 Amp
+5V standby	4 Amp
+12V	75 Amp
With Power Distributor	+5V: 50 Amp +3.3V: 30 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant


Standard Parts List

	Part Number	Qty	Description
SC846TQ-R900 Chassis	CSE-846TQ-R900B	1	4U Chassis (Black)
Air Shroud	MCP-310-48003-0N	1	SC846 Intel DP X8.X7 PC air shroud [ Manual ]
Backplane	BPN-SAS-846TQ	1	SC846 SAS Backplane w/AMI MG9072 Chip [ Manual ]
Cable(s)	CBL-0087 CBL-0157L CBL-0160L CBL-0180L-01 CBL-0217L	1 1 2 1 1	Front Panel Ribbon Cable 8-pin to 8-pin Ribbon Cable for SGPIO US Power Cord SATA Set of Four Round Cables 70/59/48/38cm 16-pin Control Panel Converter Cable
Fan(s)	FAN-0127L4 FAN-0125L4	3 2	80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Drive Trays	MCP-220-00024-0B(V)	24	3.5" Hot-swap Hard Drive Trays (V = Silver)
Mounting Rail	MCP-290-00057-0N	1	26.5" to 36.4" rail set, Quick Release for 4U 17.2" W (for rev. K4 or later)
Rail Adaptor	MCP-290-00060-0N	1	Square hole to round hole rail adaptor set
Power Supply	PWS-902-1R PDB-PT846-8824	2 1	900W High-efficiency Power Supply (Redundant) Power Supply Backplane


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Cable(s)	CBL-0140L CBL-0084L	- -	60cm 80-Wire IDE DVD Drive Cable Front control cable split converter 6"
Cable(s)	CBL-0143L CBL-0082L CBL-0231L	- - -	1x 4pin to 1x SATA S-RA SATA power extension 1x 4pin to 2x SATA S-RA SATA power extension 70cm round S-RA SATA cable
Drive Trays	MCP-220-84601-0N MCP-220-84603-0N MCP-220-00043-0N	- - -	Single 3.5" Fixed HDD Tray (RA cables required) Dual 2.5" Fixed HDD Tray (including MCP-220-84601-0N) 3.5" convert to 2.5" hot-swap HDD Tray
Peripheral Drives	DVM-TEAC-824B DVM-PNSC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2 MCP-220-84604-0N MCP-220-84605-ON	- - - - - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim IDE DVD (8x DVD, 24x CDR), Panasonic Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic Slim IDE DVD kit with bracket for SC846 Slim SATA DVD kit with bracket for SC846
Mounting Rail	MCP-290-00058-0N	-	19" to 26.6" rail set, Quick Release, Tool-less (for rev. K4 or later)
Front Bezel ( Compatibility Table )	MCP-210-84601-0B	-	Front Bezel Cover, Black with Key Lock
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
