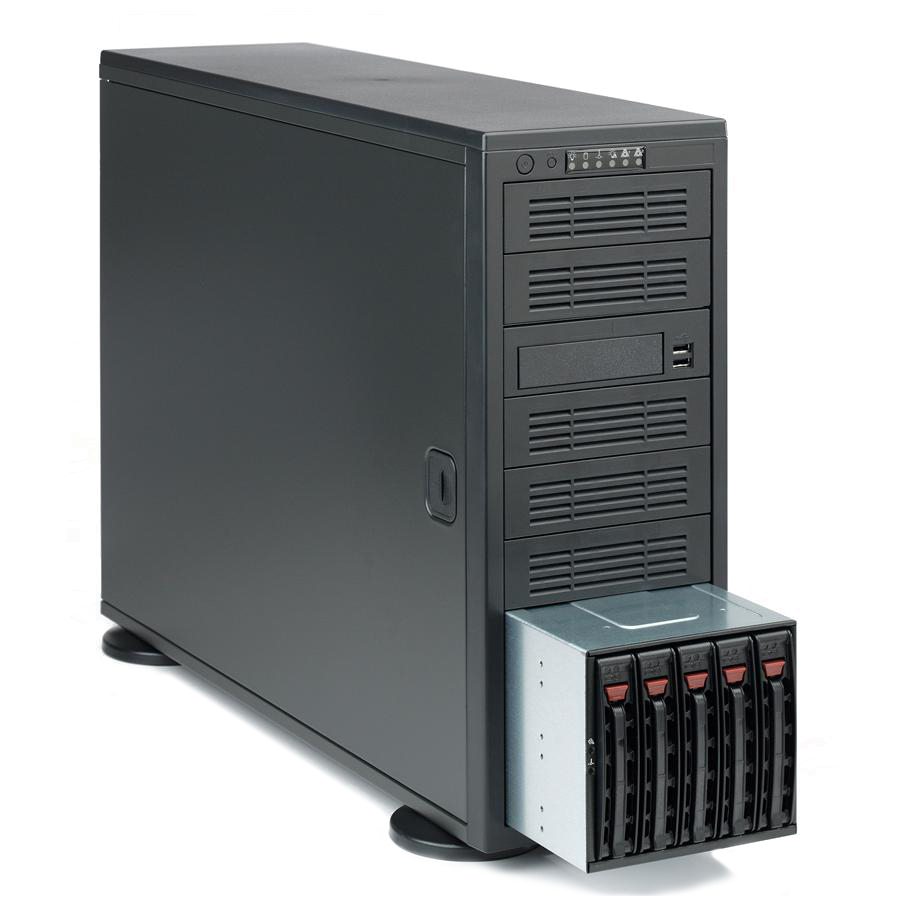

Supermicro SuperChassis 942I-650B (Black)

CSE-942I-650B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-942i-650	SuperChassis 942i-650 (Beige)
CSE-942i-650B	SuperChassis 942i-650B (Black)



Form Factor

4U chassis support for max. motherboard size - 12" x 13" E-ATX


Processor Support

Dual Xeon® Processors


Dimensions

Height	17.8" (452mm)
Width	7.0" (178mm)
Depth	23.8" (605mm)
Gross Weight	49 lbs (22.2kg)
Available Colors	Beige, Black


Expansion Slots

7x Full-height, Full-length expansion slots


Drive Bays

Peripheral Bay(s)	8x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive SAS or enterprise SATA HDD only recommended


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED
Ports	2x USB Ports (2.0 ready)


System Cooling

Fans	2x 120mm Hot-swappable Fans 1x 120mm Rear Exhaust Fan


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

650W Redundant-Cooling AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage	100 - 240V, 47-63Hz, 11 - 5 Amp
DC Output	5V + 3.3V ≤ 160W
+5V	30.0 Amp
+5V standby	4.0 Amp
+12V	46.0 Amp
-12V	0.6 Amp
+3.3V	30.0 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant


Standard Parts List

	Part Number	Qty	Description
SC942i-650 Chassis	CSE-942i-650 CSE-942i-650B	1 1	4U Chassis (Beige) 4U Chassis (Black)
Fan(s)	FAN-0053 FAN-0051	2 1	120mm Hot Plug Fan 120mm Rear Exhaust Fan
Front USB Kit	CSE-PT29(B)	1	2-Port Front USB Kit (B = Black)
Power Supply	PWS-0056	1	SP650-RP 650W Redundant-Cooling Power Supply
Tray(s)	CSE-PT36-OEM(B)	5	5.25" Dummy Tray Blank Bezel (B = Black)


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	FAN-0042-CU SKT-0095-604E SNK-P008A	2 2 2	Active Heatsink for P4 or X5 Motherboards Heatsink - required for X5 Motherboards Optional Heatsink for X6 motherboards Please refer to our Thermal Components Matrix
Mobile Rack(s)	CSE-M35S CSE-M35T1 CSE-M34S CSE-M34T	- - - -	SCSI Mobile Rack 3x 5.25" Openings to 5x 3.5" Drives SATA Mobile Rack 3x 5.25" Openings to 5x 3.5" Drives SCSI Mobile Rack 3x 5.25" Openings to 4x Drives SATA Mobile Rack 3x 5.25" Openings to 4x Drives
Mounting Rails	CSE-PT26(B)	-	4U Chassis Rail Kit (Includes Side Handles)
Peripheral Drive(s)	FPD-SONY-F(B)	-	Sony 3.5" Floppy Drive (Beige, B = Black)
