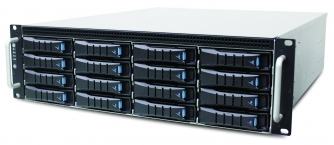

AIC 3U 12G JBOD 16 x 3.5 Hot-Swap Tool-less Drive Trays with a Single Hot-Swap Expander and a 549W Redundant PSU

Specifications

General
Number of Expander: Single
Expander Chip :LSI SAS3x28R
Host/Expansion Interface:3x Mini SAS HD (SFF-8644) per expander tray
Drives Supported
Drive Interface:
12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
Form Factor: 3.5"
Administration /Management
Admin/Firmware Upgrade:In-band & Serial port interface IEM port (Optional)
LED indicators,Audible Alarm: Yes
Hot swap and Redundancy
Disk Drive: Hot swap 16-bay
Cooling: 2 x 8038 hot swap fans
Power Supply: 549W 1+1 hot swap redundant 80+Platinum
Power Entry :Dual AC inlet
Expander: Dual expanders

Electrical and Environmental
Universal A/C Input :100-240V AC full range
Operating Environment:Temperature 0ºC to 35ºC
Relative humidity 20% to 80%
Non-operating Environment:Temperature -20ºC to 60ºC
Relative humidity 10% to 90%
Physical Specification
Dimensions(W x D x H)(with chassis ears)
mm : 483 x 534 x 131
inches : 19 x 21 x 5.2
Gross Weight(w/ PSU,w/o Rail & Disks)
kgs : 24.8
lbs : 54.6
Packaging Dimensions(W x D x H)
mm : 595 x 785 x 338
Inches : 23.4 x 31 x 13.3
Mounting
Standard :Adjustable plate
Option: 20" tool-less rail

Order information

IPC-S3ET-R549-1E-HS-12G( with single expander )

IPC-S3ET-R549-2E-HS-12G(with dual expanders)
