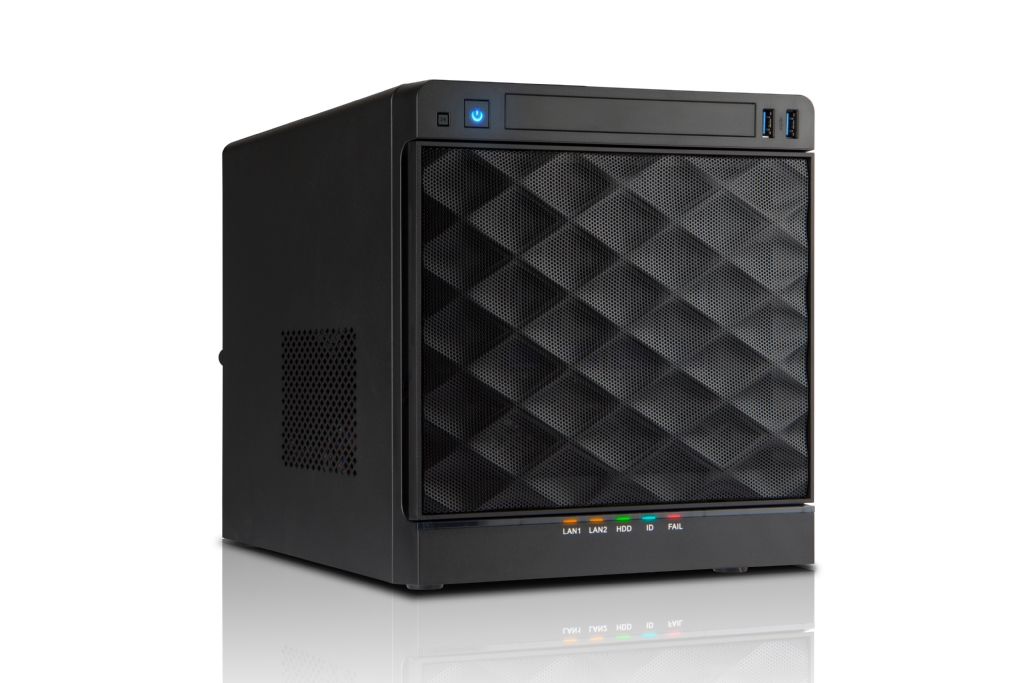

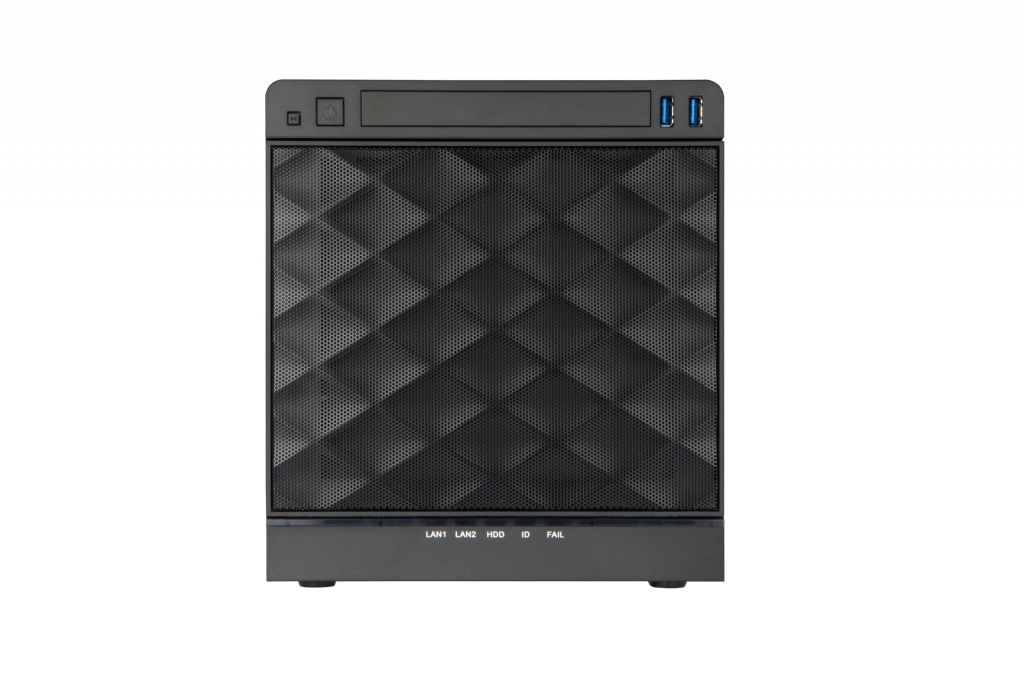

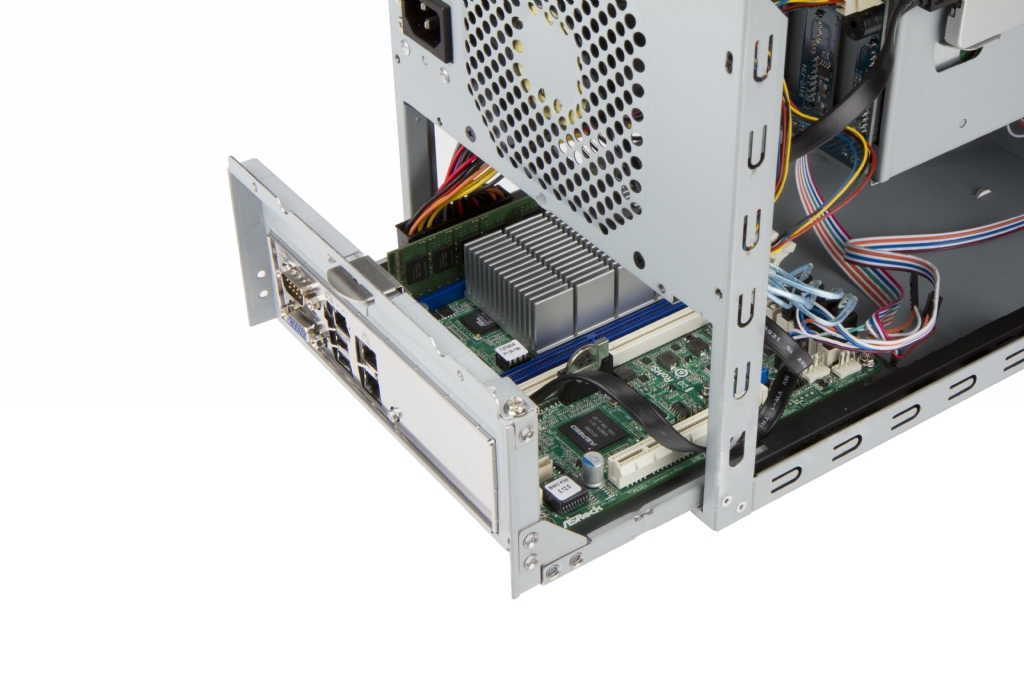

In-Win IW-MS04-01 - Mini-ITX NAS Case w/ 4x Hot-Swap Bays (SATA Discrete Connection) - 265W ATX PSU Included

IW-MS04-01

£122.91

ex. VAT

(£147.49

inc. VAT)

Great news, we have 28 of this product in stock. Available for next working day delivery.

Want it delivered by 22nd Nov 2024? Order within 3 Hours and 8 minutes and get it delivered the next working day as standard.

Trade Pricing Available

Looking for Compatible Products?

Hour

Min

Sec

Order this product before 4.30pm today and get it delivered for only £9.20* on 22nd Nov 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Frequently bought together

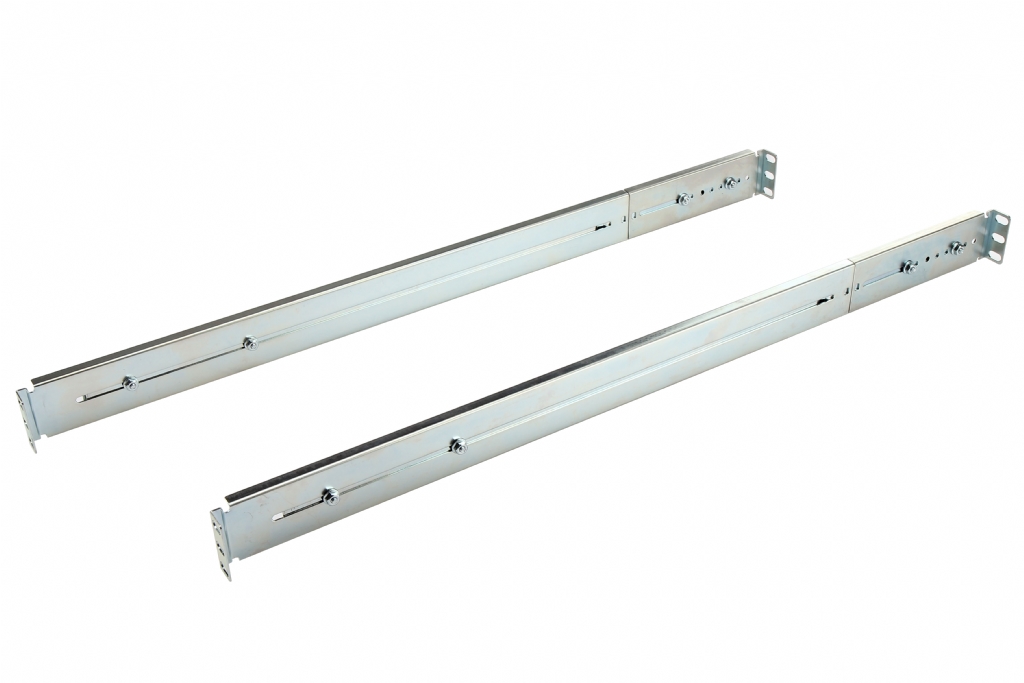

In-Win 23" King Slide Rail, Ball-Bearing

£49.99 ex VAT

(£59.99 inc VAT)

Gelid Silent 8

£5.77 ex VAT

(£6.92 inc VAT)

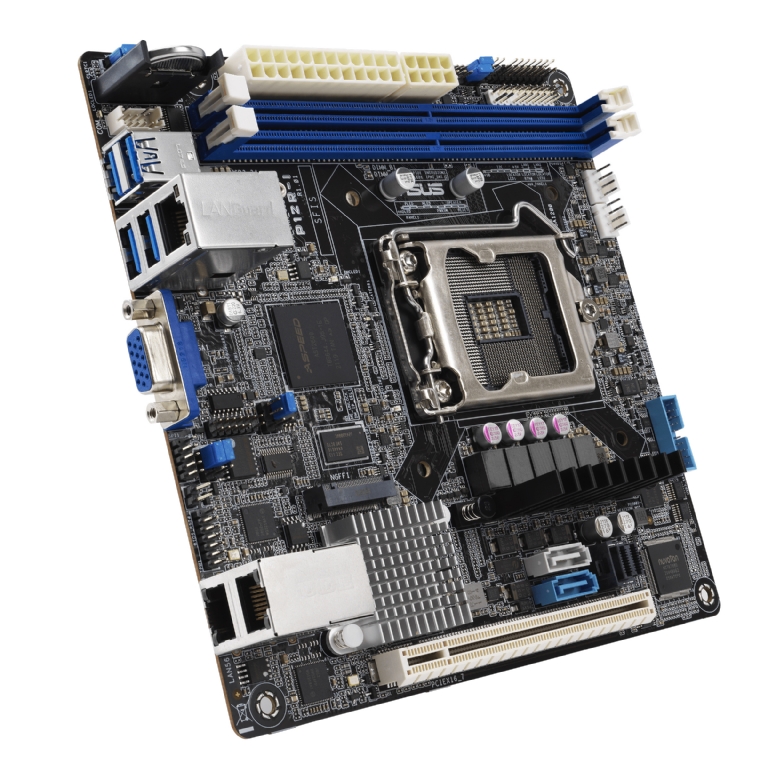

ASUS P12R-I Server Motherboard. Xeon E-2300 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB10 Module

£252.00 ex VAT

(£302.40 inc VAT)

Dynatron Q3 Intel 1700 Blower with PWM function, All-Copper Active Cooler for 1U Server Solution, Support 125 Watts CPU TDP

£56.20 ex VAT

(£67.44 inc VAT)

Technical Details
Case Form Factor	Mini ITX
Motherboard Compatibility	Mini-ITX
Drive Bays	External 5.25"	0

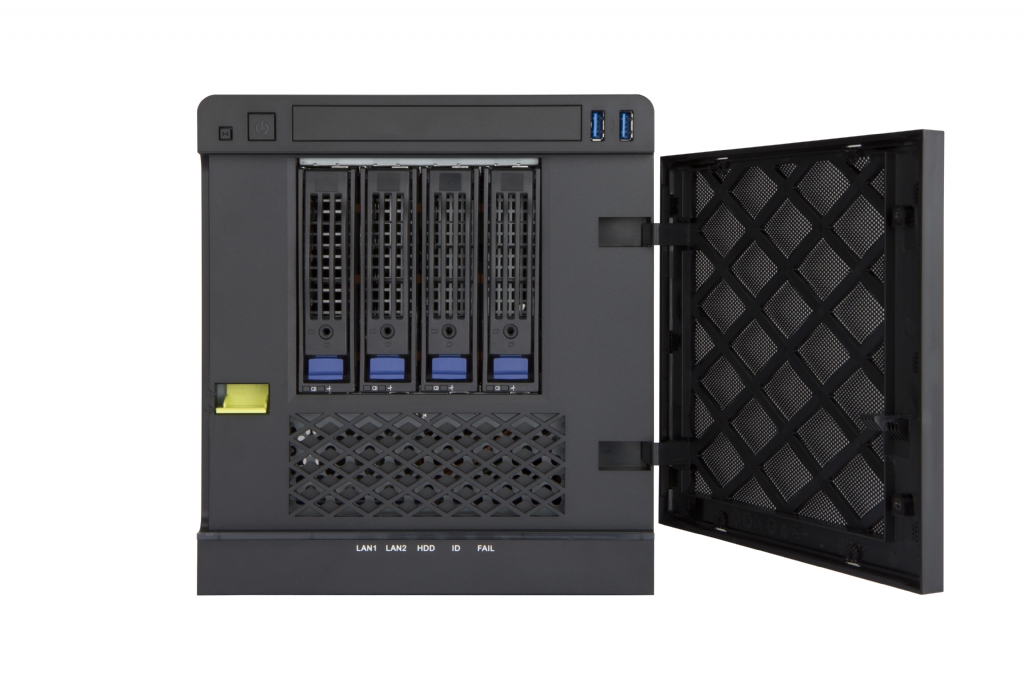

External 3.5"	4 X 3.5" or 4 X 2.5"
Internal 3.5"	0

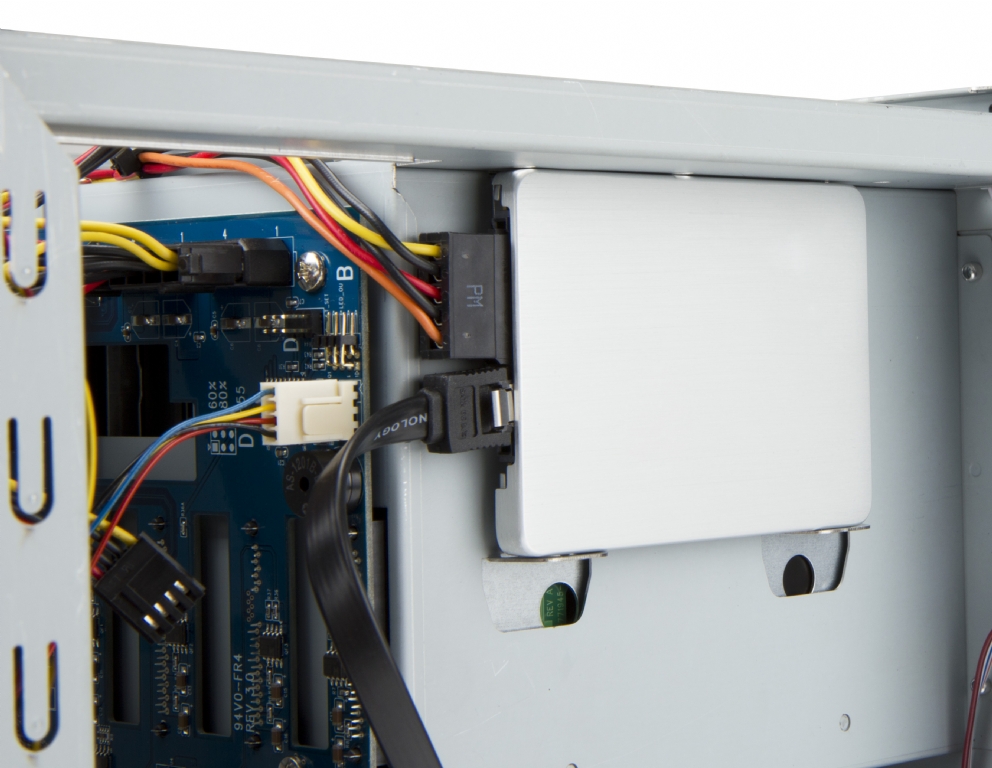

Internal 2.5"	2
Hotswap 3.5"	0
Hotswap 2.5"	0

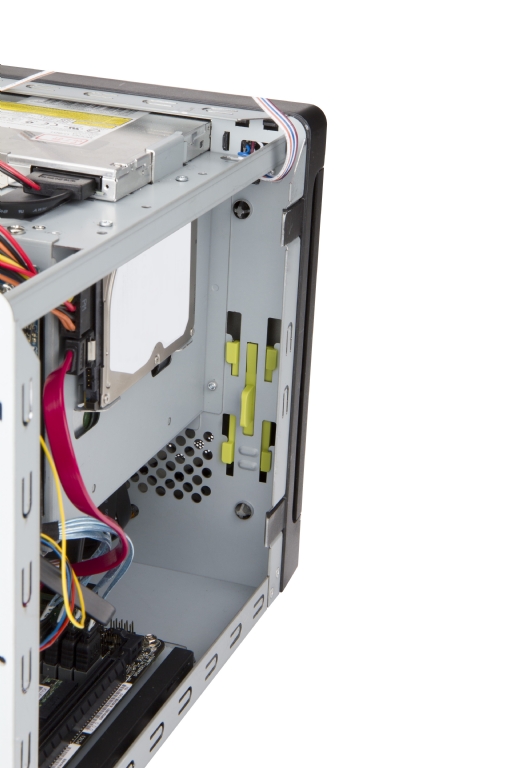

Slim Optical	1
Slim FDD	0
Hot-Swap Backplane	SATA 6Gbps backplain
Expansion Slots	Full Height	0
Low Profile	1

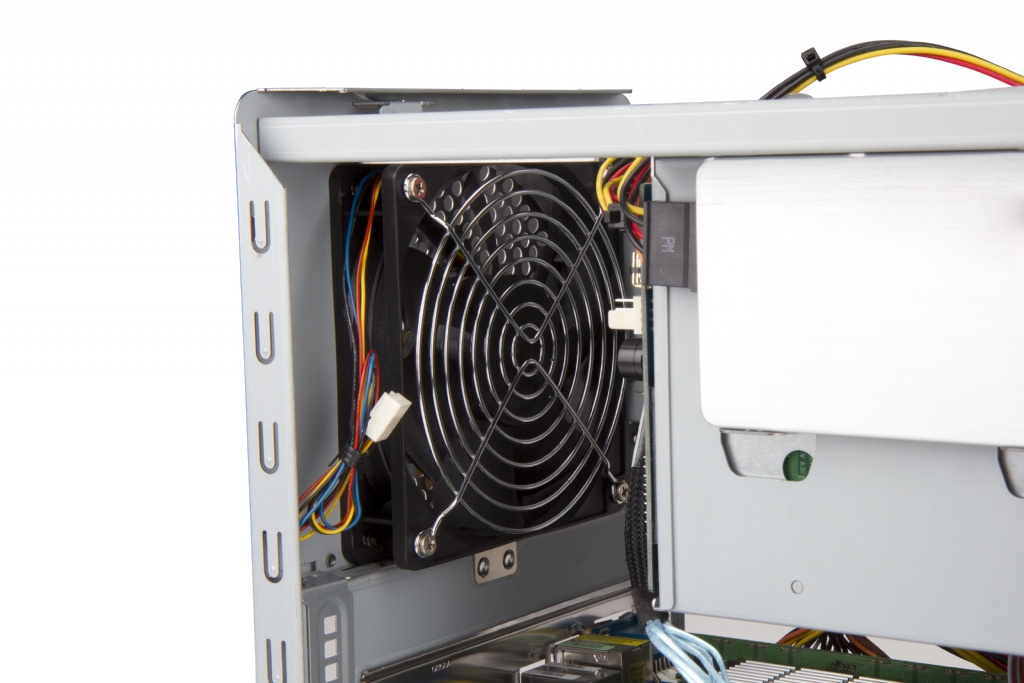

Cooling	Supports 120 mm rear PWM fan x 1
Chassis Security Features	Intrusion Switch, Padlock Loop, Kensington Slot

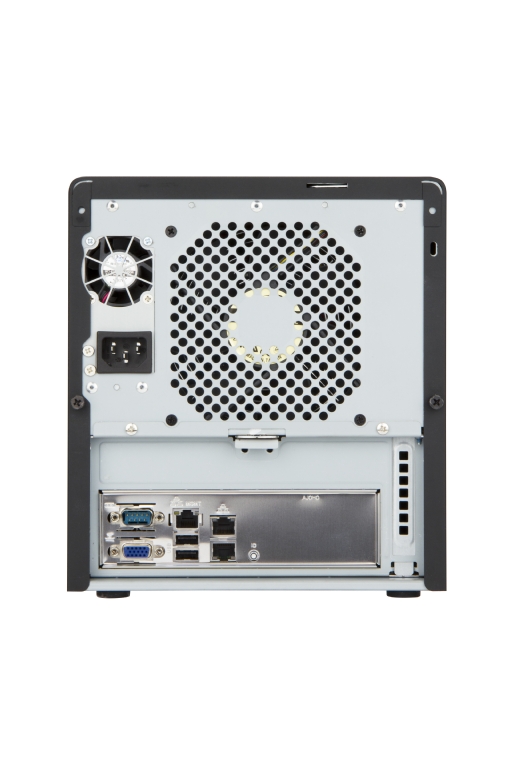

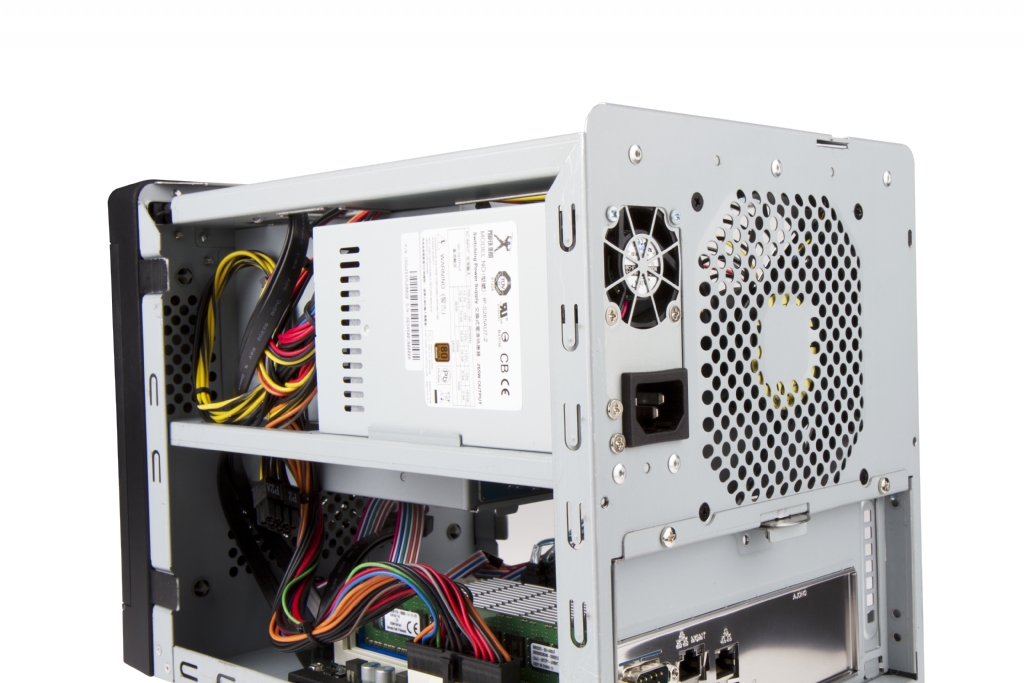

Power Supply Form Factor	Flex ATX 265W *INCLUDED
Front Panel Connectors, Switches & Indicators	Power Switch	YES
Reset Switch	YES
USB 2.0	0
USB 3.0	2
Serial	0
Indicators	Power, 2 LAN, Warning and HDD LEDs
Colour	Black
Material	SECC
Dimensions & Weights
Packaging	Single Box
Dimensions	(DxWxH mm) 275 x 210 x 230 mm (10.8" x 8.3" x 9.1")
Weight	6.33 kg (Approx)
What's Included
1 x Chassis 1 x Accessory Box

Customer Reviews

Malcolm J Bloor

Bought the case for a N100 based ITX board. Screws and similar well packaged. The SATA backplane has a SGPIO port which is not present on the motherboard, so I set the jumper appropriately according to the user manual from the website. I still have a red LED close to that jumper which flashes . Still waiting for a USB2 to USB3 adapter to connect the front panel USB ports. So the usual mismatch between board and case connections, but no big deal. So Im close to closing the lid on the case . Looks very nice, quiet and no problems.

Review Submit 15th Nov 2024

Paul Ratcliffe

Quiet, Small, Perfect case for my NAS

Review Submit 21st Oct 2020

Phillip Corns

Perfect case for my MiTX build. Hot swap bays for my Emby / Plex server without having to strip the system to upgrade to bigger disk space. Everything included (fans, PSU) which is great for the price and extremely quiet! Will purchase another in the future for my personal system. Overall Superb quality and excellent service from Server Case UK even during these trying times of Covid-19 pandemic. 5*

Review Submit 13th May 2020

Al J

Great case, 10/10.

Review Submit 10th Apr 2020

Pavel Hrabal

Perfect case for my NAS. I was surprised by quality of the case and flexible cables (USB 3 cable is really flexible here). There could be better dust protection on the sides.

Review Submit 7th Oct 2019

Simon Lee

Good case for building a small home server in, fits a lot in a small space, cable lengths are perfect. Fans in the case and included PSU are barely audible, which is great as this is not always the case with server hardware, where sound levels often are compromised to enable high airflow instead.

Review Submit 4th Jun 2019

Josh M

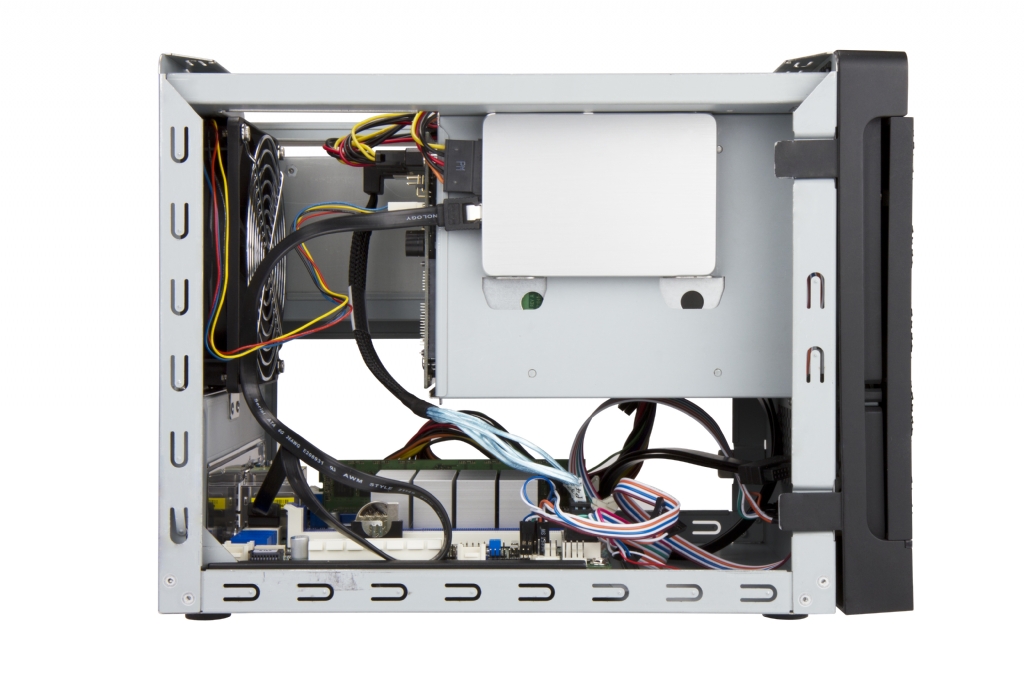

Fantastic little case for a home server. Feels spacious considering its size, along with the 4x 3.5" hot swap bays there is a mount point for a 2.5" drive. I've also managed to place another 2.5" SSD above in the empty space where you can install a slim disc drive. There's room for one PCI Express card, though if you were installing a GPU it would need to be a smaller single slot model.

Review Submit 30th Apr 2019
