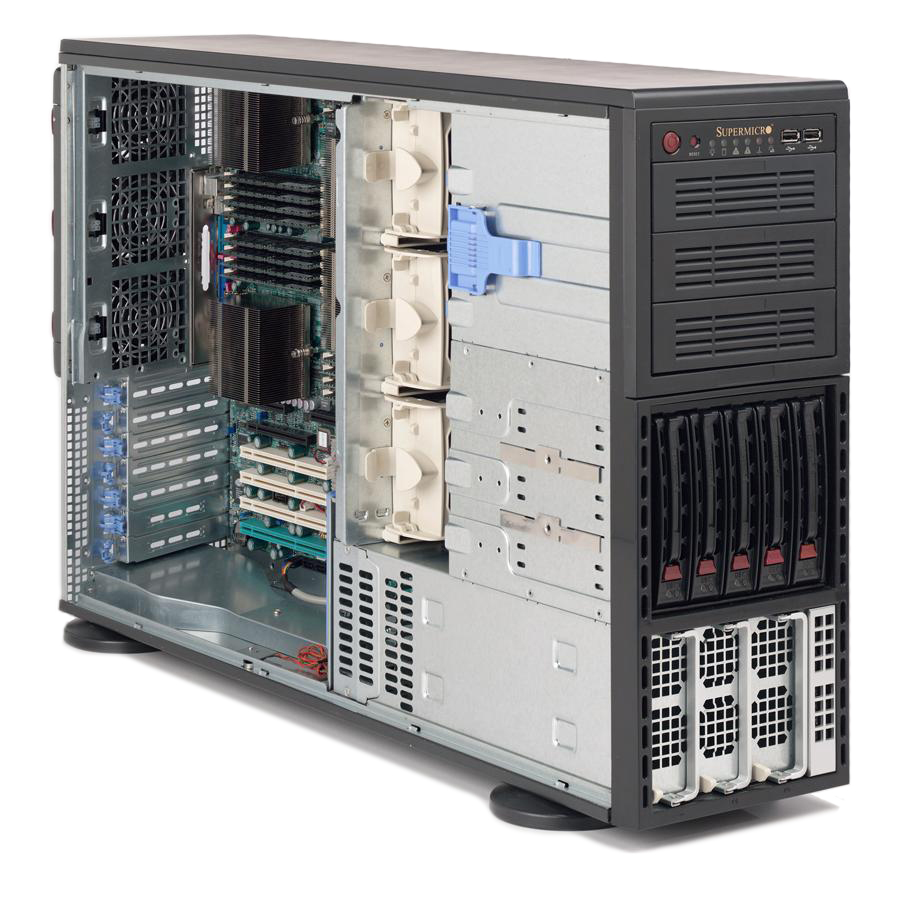

Supermicro SuperChassis 748TQ-R1000B (Black)

CSE-748TQ-R1000B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description


Product SKUs

CSE-748TQ-R1000	SuperChassis 748TQ-R1000 (Beige)
CSE-748TQ-R1000B	SuperChassis 748TQ-R1000B (Black)


Form Factor

Tower / 4U chassis support for quad motherboards - up to size 16.48" x 14.3"


Processor Support

Intel & AMD Quad Processors


Dimensions

Height	17.8" (452mm)
Width	7" (178mm)
Depth	28.4" (721mm)
Gross Weight	72 lbs (32.7kg)
Available Colors	Beige, Black


Expansion Slots

7x PCI expansion slots


Drive Bays

Hot-swap	5x 3.5" Hot-swap SAS/SATA Drive Bays SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)	2x 5.25" Peripheral Drive Bay 1x 5.25" Bay For Floppy Drive


SAS / SATA Backplane

SAS / SATA Hard Drive Backplane with SES2


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED
Ports	2x USB Ports


System Cooling

Fans	3x 5000 RPM Hot-swap Cooling Fans 3x 5000 RPM Hot-swap Rear Exhaust Fan


System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

1000W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 50 - 60Hz, 15 - 7 Amp
+5V standby	4 Amp
+12V	83 Amp
With Power Distributor	+5V: 20 Amp +3.3V: 20 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant


Standard Parts List

	Part Number	Qty	Description
SC748TQ-R1000 Chassis	CSE-748TQ-R1000 CSE-748TQ-R1000B	1 1	4U Chassis (Beige) 4U Chassis (Black)
Backplane	CSE-SAS-M35TQ	1	M35 SAS BACKPLANE W/AMI MG9072
Power Supply	PWS-1K01-1R	2	SP1K0-1R 1U/1000W REDUNDANT POWER MODULE
Power Distributor	PDB-PT748-8824	1	OUTPUT CONNECTORS INCLUDE 24 PIN


Optional Parts List

	Part Number	Qty	Description
Cable	CBL-0157L	-	8-pin to 8-pin Ribbon Cable for SGPIO (For Additonal Drives)
Heatsink / Retention	-	-	Please refer to our Thermal Components Matrix
Mounting Rails	MCP-290-00001-00 MCP-290-00059-0B	- -	4U Chassis Rail Kit (Includes Side Handles) 4U Chassis Rail Kit (Includes Side Handles) for Rev. K Chassis
Peripheral Drives	DVM-SONY-DVDRW-HB DVM-LITEONFH-DVDRWB DVM-LITE-DVDRW-HBT DVM-LITE-DVD-HBT	- - - -	Black Sony Half-height DVD-RW IDE Drive, RoHS Black Liteon Half-height DVD-RW Drive, RoHS Black Liteon Half-height DVD-RW SATA Drive, RoHS Black Liteon Half-height DVD-RW SATA Drive, RoHS
Peripheral Drives	FBD-TEAC-1.44MB	-	Floppy Disk Drive
