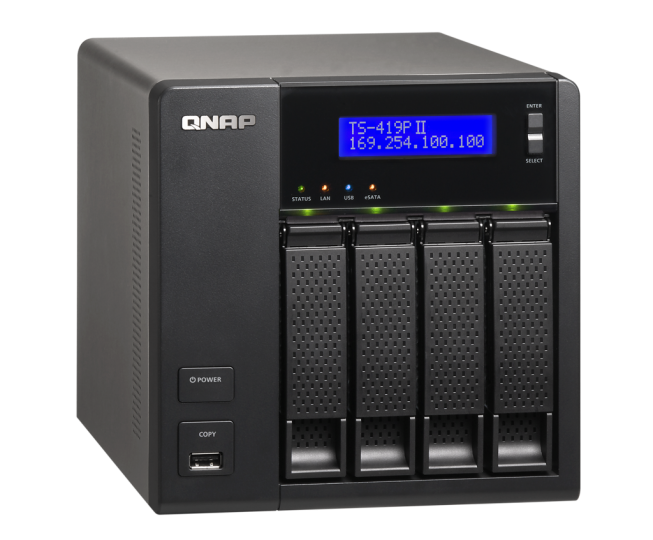

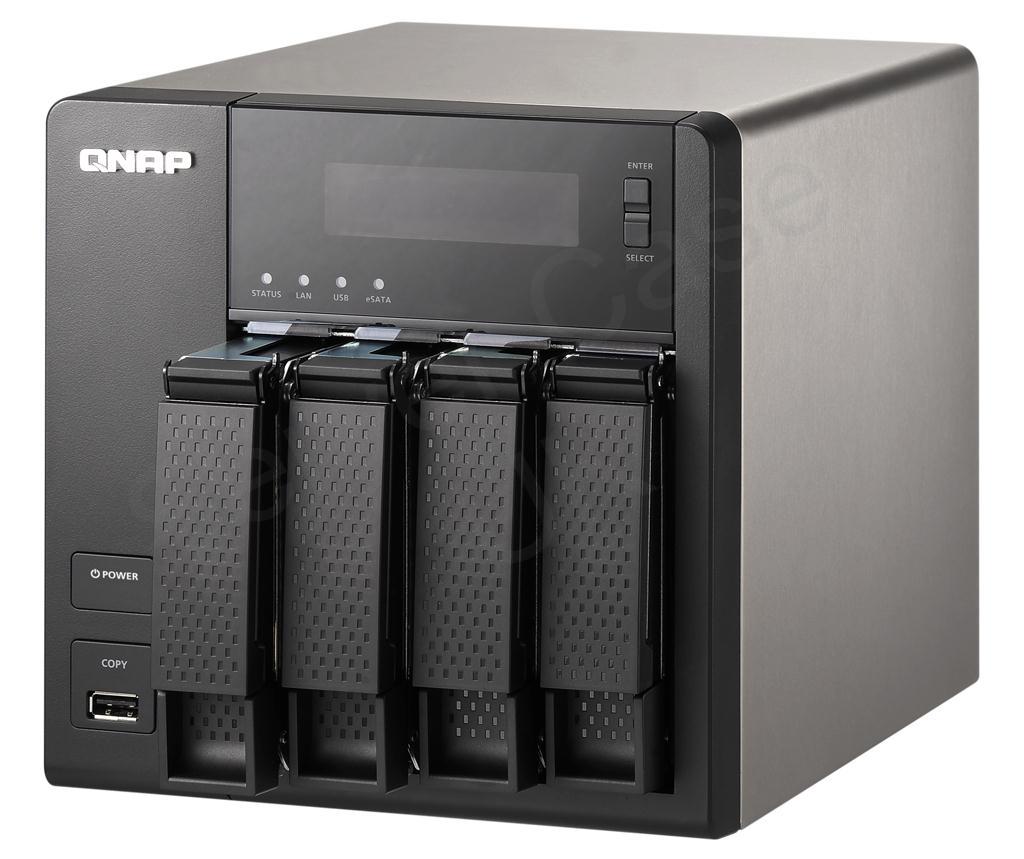

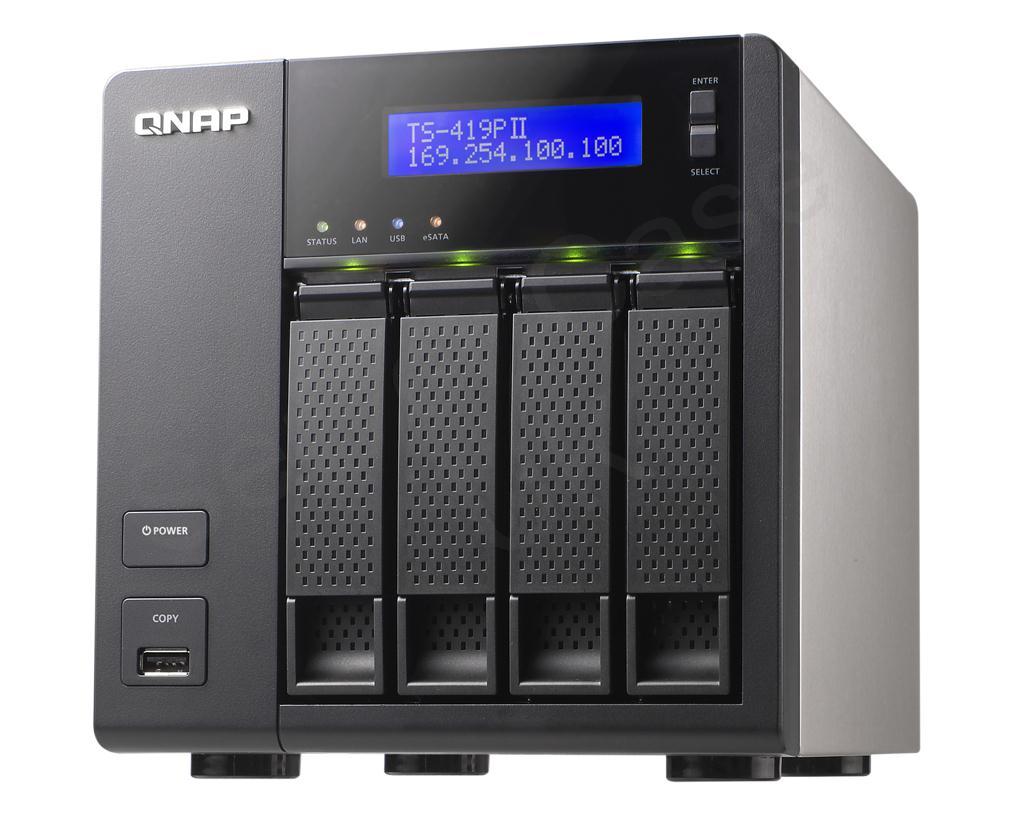

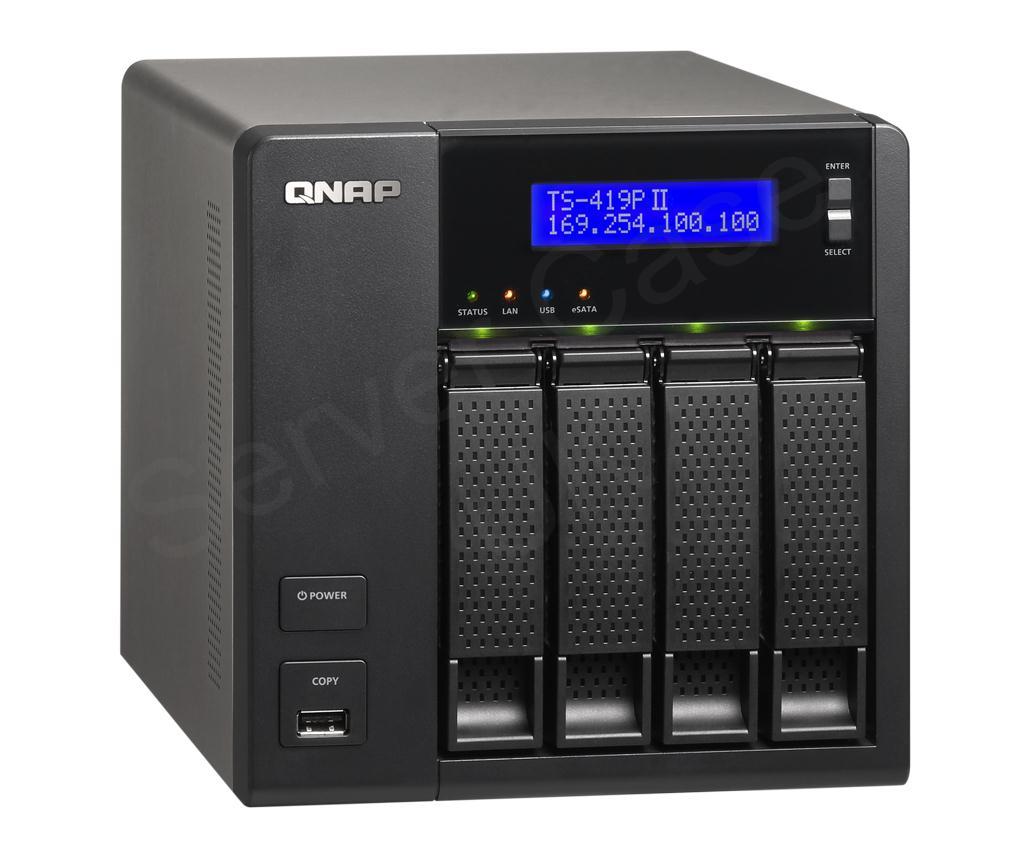

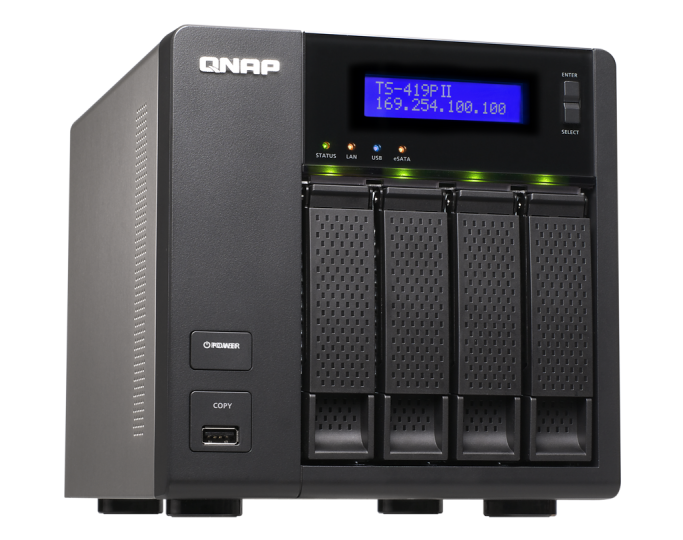

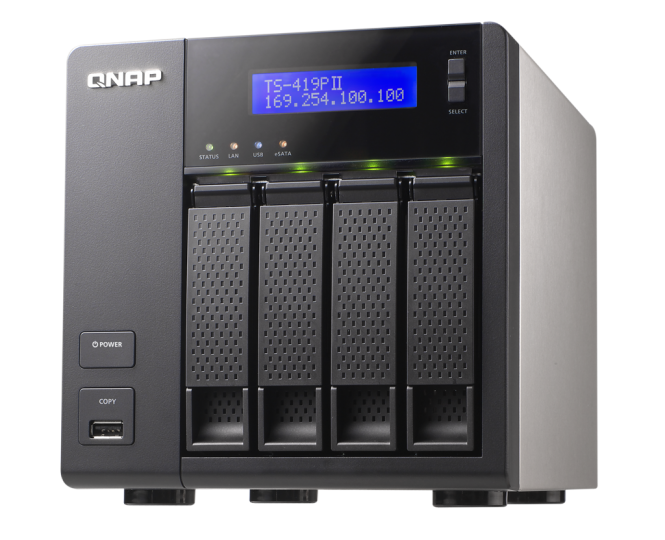

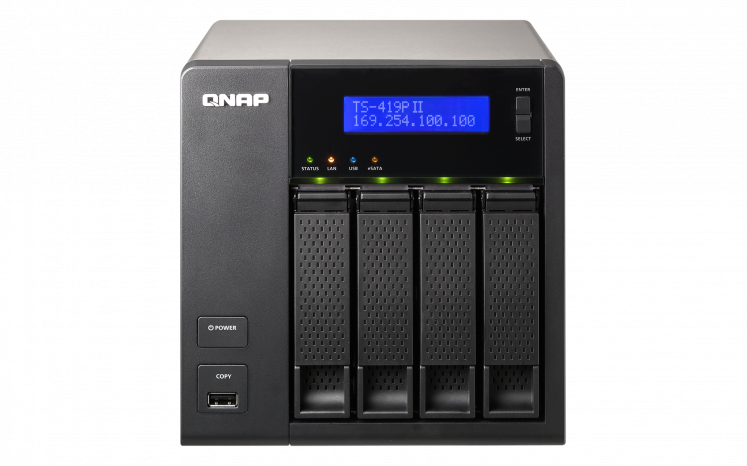

QNAP TS-419P II All-in-One Tower Server 4-Bays Turbo NAS for Home and SOHO Users (Black)

Featuring versatile applications for data storing, sharing, and backup, paired with top-notch hardware specifications among the same class products, the TS-419P II provides an extraordinary solution for home and SOHO environments. The TS-419P II delivers outstanding performance at over 109 MB/s download speed and 75 MB/s upload speed with RAID 5 configuration under Windows network setup. Its cross-platform support provides a seamless file sharing solution for Windows, Mac, and Linux/UNIX users. To respond to the growing needs of data protection, the TS-419P II provides local backup, remote backup, and cloud backup alternatives for safeguarding important data with an additional copy. In addition to providing efficient data sharing and backup, the capability of streaming videos, music, and photos to a variety of home devices, such as UPnP TV sets, hi-fi audio sets, Sony PS3, and Microsoft XBOX360, makes the TS-419P II a fun digital home centre. The intuitive MyCloudNAS service simplifies the process of publishing contents in the TS-419P II over the Internet and helps create a personal cloud in just few steps. When on the go, the mobile app QMobile provides users who own an iOS or Android mobile device with a handy way to access the TS-419P II instantly.



The TS-419P II supports SMB/CIFS with folder aggregation, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. User accounts and shared folders can be created via the user-friendly web-based interface without IT expertise. The antivirus feature ensures business continuity by offering manual and scheduled virus scan against the latest viruses, malware, worms, and Trojan horses. The TS-419P II can be easily joined to a Windows Active Directory or LDAP Directory Service for efficient user account management. The domain users can use the same user account and password to connect to the TS-419P II on the local network. The TS-419P II provides an easy way for photo backup, archiving, and sharing. Simply upload photos to the TS-419P II, and beautiful albums are automatically created. The albums are available for a web browser or UPnP compatible players. Browsing the photos on widescreen TV with your family or share the photos over the Internet has never been easier. The TS-419P II provides various ways for enjoying the music stored on it. Simply upload music to the TS-419P II, and it's ready to go. It provides proficient capability for storing high-definition videos, movies, and ripped Blu-ray DVDs, and then stream to a TV directly or via Sony PS3, Microsoft Xbox 360, or other network media players.Features

• 4 x 3.5 inch SATA II or 2.5 inch SATA II HDD/SSD
• Superior Performance with Marvell 2.0 GHz CPU
• 512MB DDR3 RAM Memory
• Cross-platform Data Sharing Center
• Complete Backup Solutions
• Revolutionary Home Video, Music & Photo Center
• Personal/Private Cloud Storage
• QMobile App for On-the-go Contents Access
• Energy-efficient & Eco-friendly

Specifications

CPU
Processor	Marvel 2.0GHz
Processors (Max)	1 (1)
Electrical
Power Adaptor Output	12VDC
Voltage/Power/Frequency	100 to 240V AC / 26W
Cooling System	1 x quiet cooling fan (9 cm, 12V DC)
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 - 95%
Noise Level (full operating mode)	37dbA
General
Model Name	TS-419P II
Product Type	Network Attached Storage
Warranty	2 years limited warranty.
Barcode	4712511122152

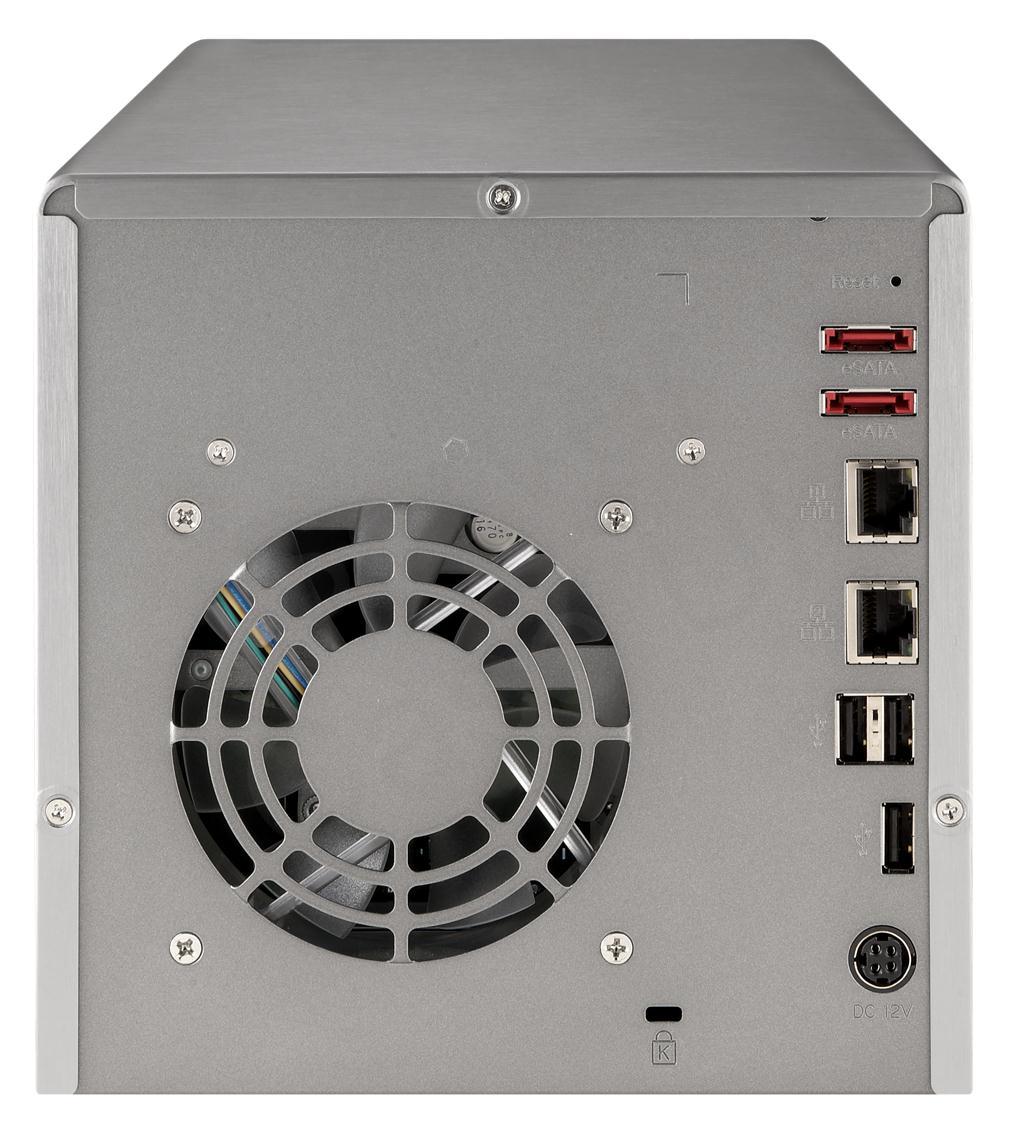

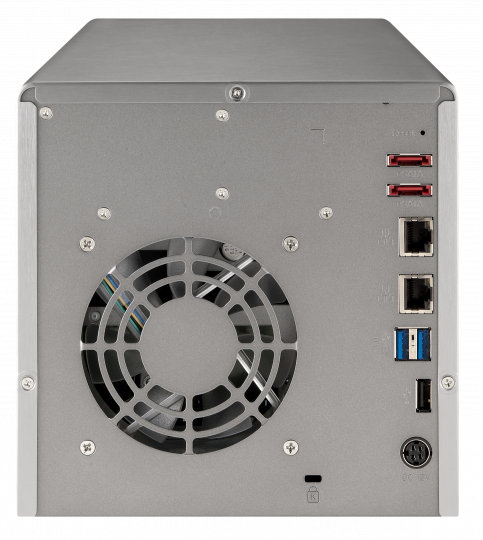

Interfaces/Ports
RJ-45 Ports	2 x RJ-45
USB Ports	2 x USB 3.0 � 2 x USB 2.0
eSATA Ports	2 x eSATA
Memory
Memory (Maximum)	0.512GB DDR3
Flash Memory	16MB
Network (Wired)
Network Card	Ethernet 10/100/1000Mbps
Network File Protocols	CIFS/SMB (Plus DFS Support), AFP, NFS, FTP, WebDAV
Network Transport Protocols	TCP/IP
Network Client Types	DHCP Client
Physical
Case Colour	Black
In The Box	TS-419P II NAS � Adaptor � Power Cord � CD-ROM � Quick Installation Guide � 1 x Ethernet Cable � Flat head screw x 16 (for 3.5-inch HDD) � Flat head screw x 12 (for 2.5 HDD)
Dimensions	18.0cm (W) x 23.5cm (D) x 17.7cm (H) - Weight 3.0kg
LED Status Indicators	STATUS, LAN, USB, eSATA, HDD1, HDD2. HDD3, HDD4
Storage
Hard Drive Interface	SATA II
Hard Disk	0GB (1 x 0GB)
Storage: Included Array
RAID Format	RAID Level 0, 1, 5, 6, 10, JBOD
System
Management	Disk Management: Single Disk, JBOD, RAID 0, 1, 5, 5+Hot Spare, 6, 10; Online RAID Capacity Expansion & Online RAID Level Migration; Bad Block Scan & HDD S.M.A.R.T; RAID Recovery; Bitmap Support; Supports ISO Mounting (via Web File Manager & Web Administration) � Access Right Management: Max User Accounts: 4,096; Max Groups: 512; Max. Share Folder: 512; Batch Creating Users; Import/ Export User; User Quota Management; Subfolder Permissions Support; LDAP Directory Service � Power Management: Wake on LAN; Scheduled Power on/off (Max 15 settings); Automatic Power on after Power Recovery
Security	Alarm Buzzer: System warning � K-lock security slot for theft prevention � IP Filter & Policy-based Automatic IP Blocking � Network Access Protection with Auto-blocking � Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/ SFTP (admin only), Encrypted Remote Replication (Rysnc over SSH) � CIFS Host Access Control for Shared Folders � Importable SSL Certificate � Instant Alert via E-mail, SMS � Military-level encryption for external drive (AES-128, AES-192, and AES-256)
Language Selection	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Spanish, Swedish, Turkish
Operating System	Linux Embedded
System Requirements
Operating Systems Supported	Microsoft Windows 2000, XP, Vista (32/ 64 bit), Windows 7 (32/ 64 bit), Windows Server 2003/ 2008 � Mac OS X � Linux and UNIX
