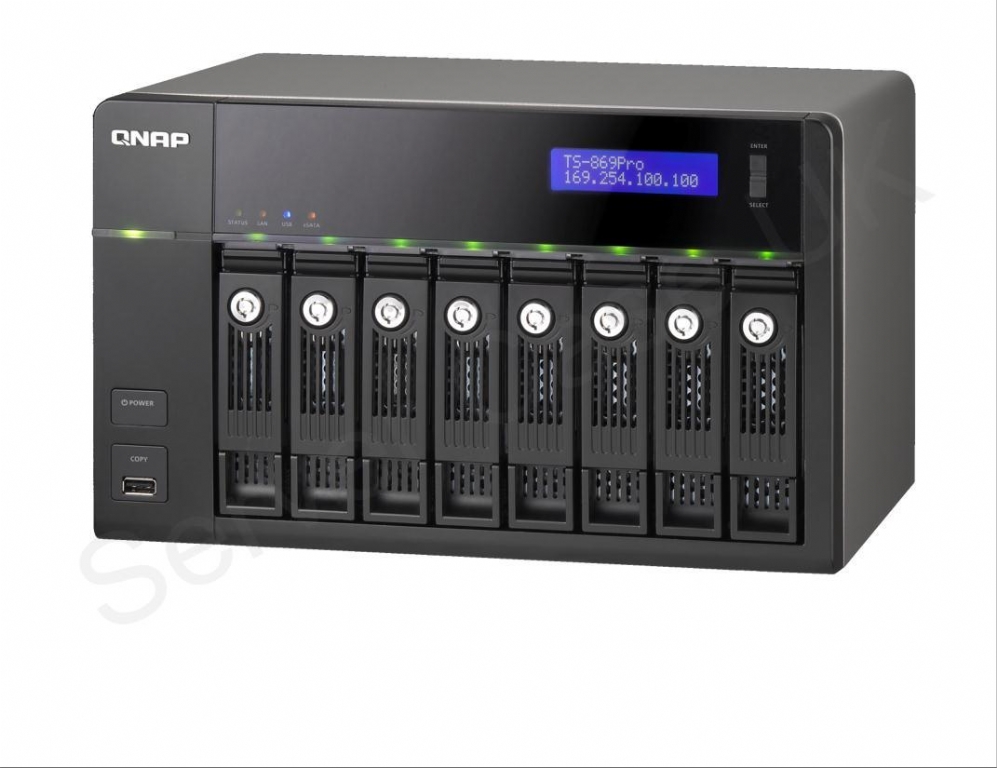

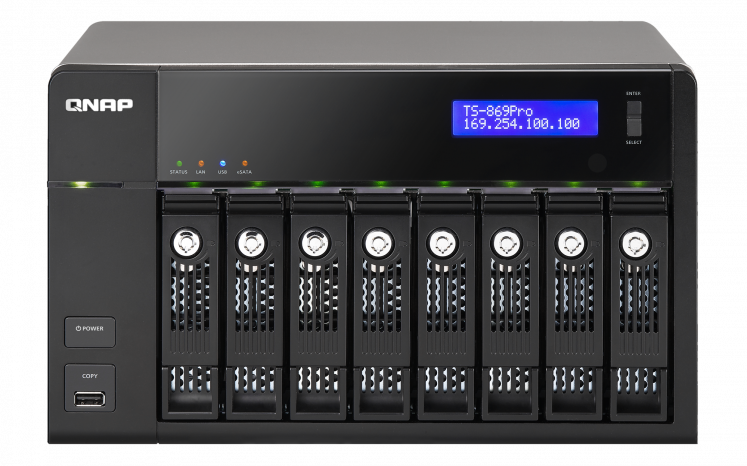

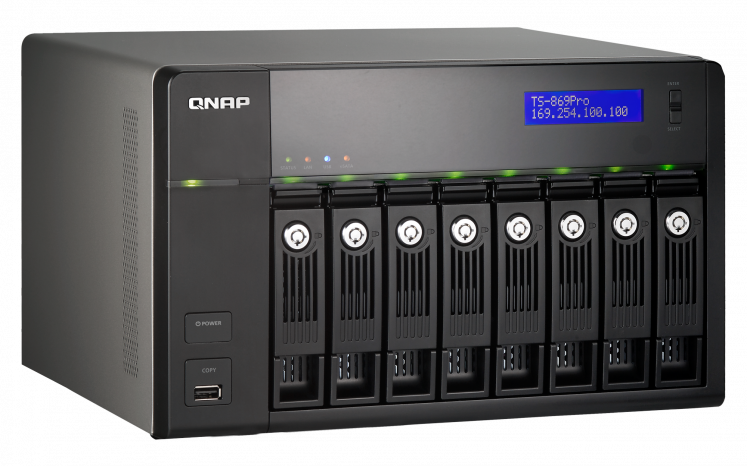

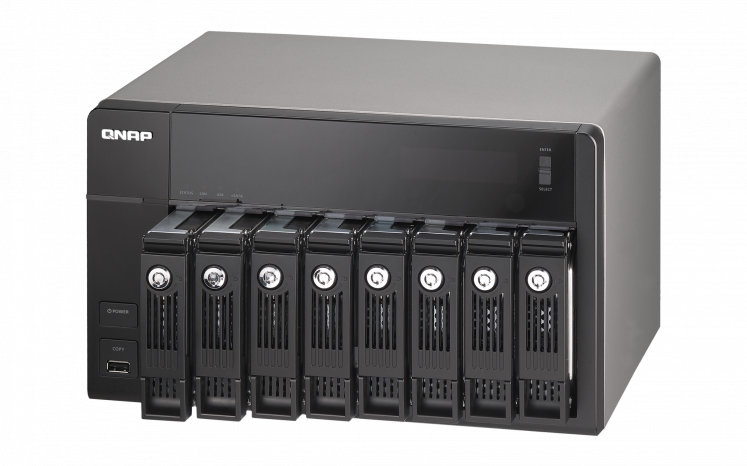

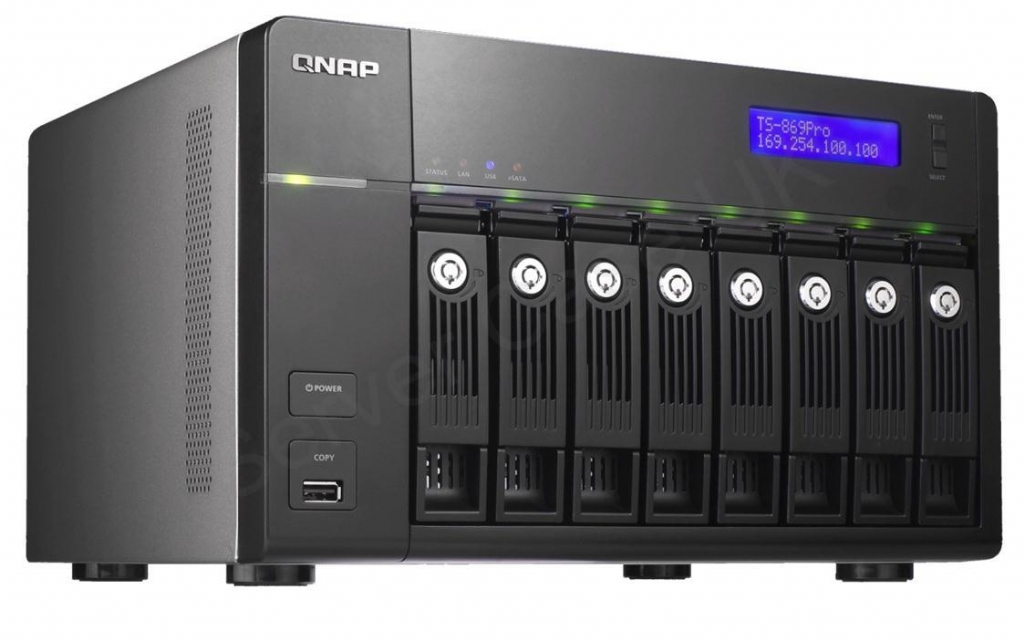

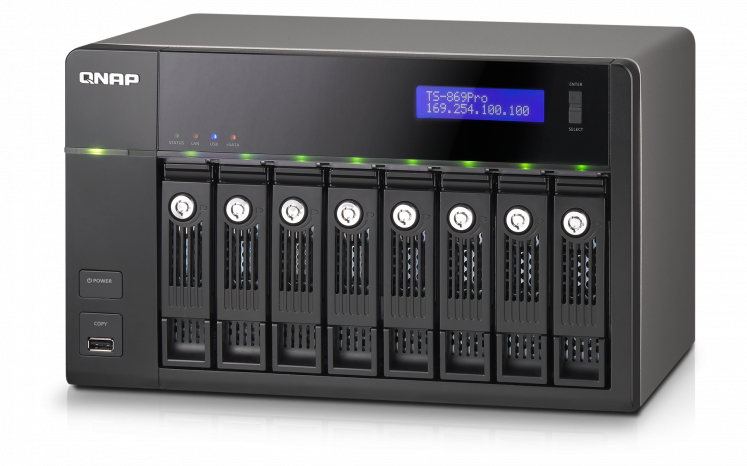

QNAP TS-869 Pro Tower Server 8-Bay Turbo NAS for Small and Medium Business Users

Modern businesses and workgroups face the challenge of finding a robust storage solution that can scale with the exponential increase in digital content their organization creates. From shared documents, old archived files and large rich media files, through to enterprise databases and core applications data, this challenge will only become more acute. Deploying an appropriate IT environment with a reliable, affordable and expandable storage solution is business critical. The ability to securely store, share and back-up digital assets has become one of the most important tasks for an SMB IT administrator, choosing the right option will significantly enhance business productivity and crucially offer a reliable disaster recovery solution in an age when downtime of any nature impacts profitability. The QNAP TS-869 Pro is a 8-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. Features include, secure cross-platform file sharing for Windows, Mac, and Linux/UNIX users, an iSCSI/ IP-SAN storage combo solution and a number of versatile, value-added business applications. With a well-rounded set of backup solutions integrated in the QNAP TS-869 Pro, critical business information can be safely protected against unexpected data loss. The QNAP TS-869 Pro is also an ideal shared storage solution for virtualized and clustered environments, via VMware Ready and Citrix Ready certification, and a proven compatibility with Microsoft Hyper-V environments.



The intuitive MyCloudNAS service simplifies the process of publishing content residing on the Turbo NAS over the Internet and helps users create a private cloud in just a few simple steps. The mobile app QMobile provides iOS or Android mobile device users with a convenient way to access the Turbo NAS live, on the go. The Turbo NAS supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. User accounts and shared folders can be created via the user-friendly web-based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business continuity by offering detection against the latest viruses, malware, worms, and Trojan horses. The Windows AD and LDAP (Lightweight Directory Access Protocol) directory service features enable the IT administrator to retrieve user accounts from Windows AD or LDAP-based directory server to the Turbo NAS, reducing time and effort in account setup. Users can use the same login name and password to access the Turbo NAS. The Turbo NAS supports mounting ISO images of CD and DVD discs as network shares for data archiving, storage, and sharing. This feature saves the space for storing the physical discs, reduces the risk of data loss caused by disc wearing and tearing, and enhances the efficiency of data sharing on business network.Features

• Intel Atom 2.13GHz Dual-core Processor
• 1GB RAM (512MB DOM Flash)
• Centralized Storage and File Sharing
• Backup Center for Business
• NAS, iSCSI/ IP-SAN Storage Combo Solution for Server Virtualization
• iSCSI and Virtualization Deployment
• Feature-rich All-in-one NAS Applications Private Cloud Storage for Ease of Deployment
• Exceptional Performance: 221.8 MB/sec Reading, 220.8 MB/sec Writing
• SuperSpeed USB3.0, SATA 6Gb/s Supported
• Energy-efficient & Eco-friendly

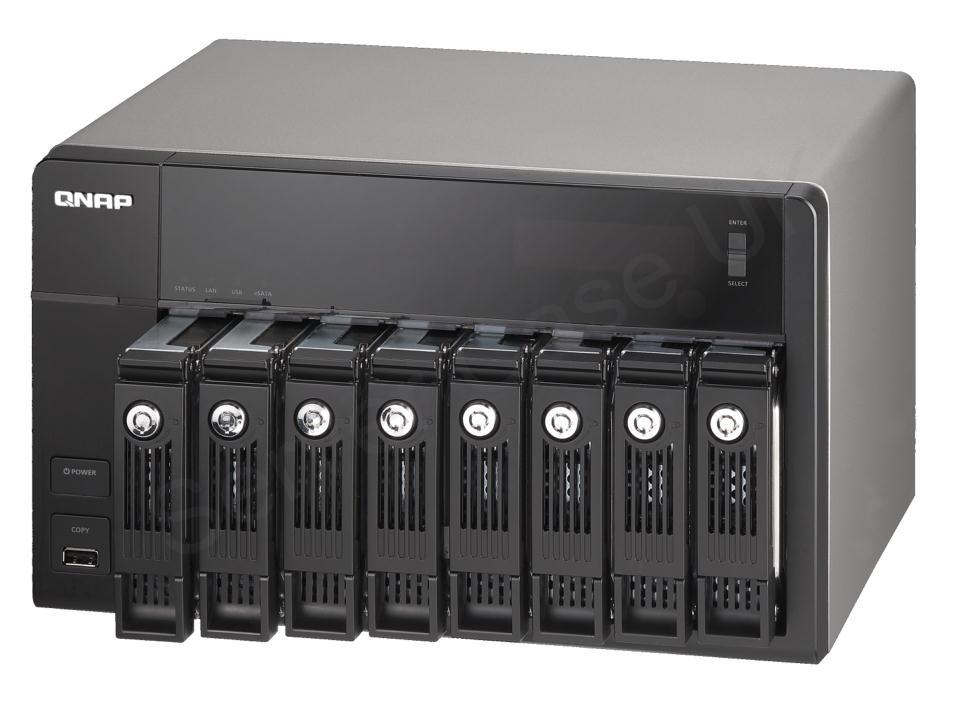

• 8 x hot-swappable and lockable tray

Specifications

CPU
Processor	Intel Atom (D2700) 2.13GHz 1MB (L2 Cache)
Processors (Max)	1 (1)
Electrical
Power Supply	350W
Voltage/Power/Frequency	100 to 240V AC / 59W / 50 to 60Hz
Cooling System	2 x quiet cooling fan (12 cm, 12V DC)
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level (full operating mode)	40dbA
General
Model Name	TS-869 Pro
Warranty	2 years limited warranty.
Barcode	4712511123432

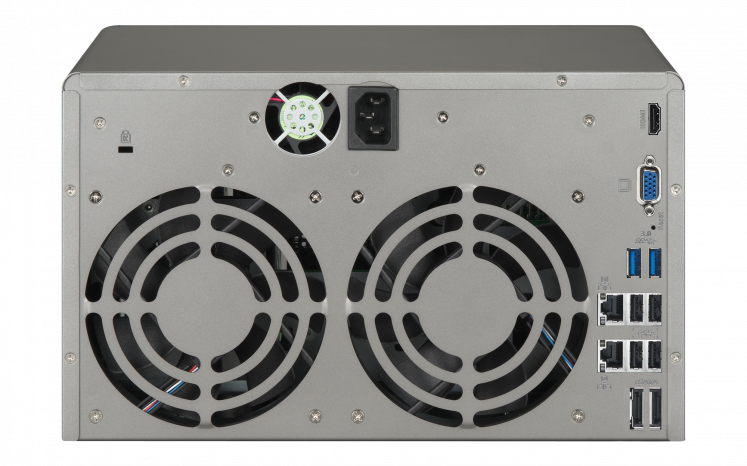

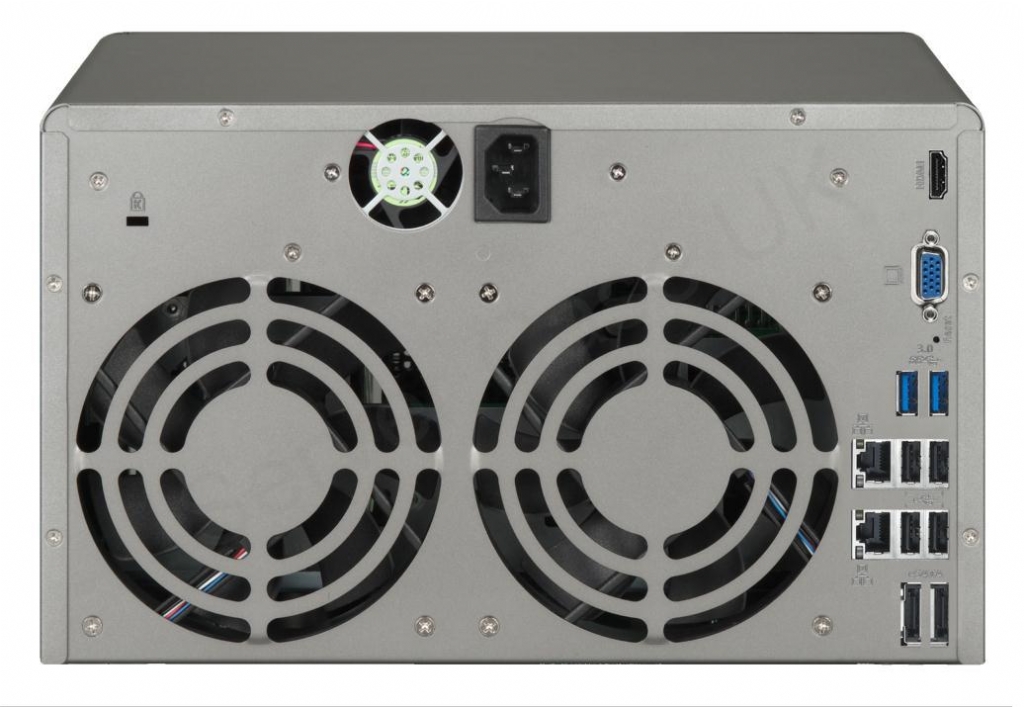

Interfaces/Ports
RJ-45 Ports	2 x RJ-45
USB Ports	2 x USB 3.0 � 5 x USB 2.0
VGA Port	1 x 15-pin D-Sub
eSATA Ports	2 x eSATA
Memory
Memory (Maximum)	1GB (3GB) DDR3
Flash Memory	512MB
Network (Wired)
Network Card	Ethernet 10/100/1000Mbps
Network File Protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
Network Transport Protocols	TCP/IP
Network Client Types	DHCP Client
Physical
Case Colour	Black
In The Box	TS-869 Pro � CD-ROM � Ethernet Cable x 2 � Quick Installation Guide � Flat Head Screw x 24 (for 2.5 inch HDD) � Flat Head Screw x 32 (for 3.5 inch HDD) � Hard Disk Lock x 1 � Power Cord
Dimensions	29.82cm (W) x 23.5cm (D) x 18.52cm (H) - Weight 7.3kg
LED Status Indicators	Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7, HDD 8
Storage
Hard Drive Interface	SATA
Hard Disk	0GB (8 x 0GB)
Storage: Included Array
RAID Format	RAID Level 0, 1, 5, 6, 10, JBOD
System
Management	Disk Management: Single Disk, JBOD, RAID 0, 1, 5, 5 + Hot Spare, 6, 6 + Hot Spare, 10, 10 + Hot Spare; Online RAID Capacity Expansion; Online RAID Level Migration; Bad Block Scan and Hard Drive S.M.A.R.T; Global Hot Spare Drive (4-bay NAS and above); RAID Recovery; Bitmap Support � Power Management: Wake on LAN; Internal Hard Drive Standby Mode; Scheduled Power on/ off (Max. 15 Settings); Automatic Power on after Power Recovery; USB and Network UPS Support with SNMP Management � Access Right Management: Max No. of Users: 4,096; Max No. of User Groups: 512; Max No. of Network Shares: 512; Batch Users Creation; Import/Export Users; User Quota Management; Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager
Security	K-lock security slot for theft prevention � IP Filter and Policy-based Automatic IP Blocking � Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP � Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH) � CIFS Host Access Control for Shared Folders � Antivirus Protection � FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption � AES 256-bit External Drive Encryption � Importable SSL Certificate � Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), Beep, and LCD Panel
Language Selection	Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
Operating System	Linux Embedded
System Requirements
Operating Systems Supported	Microsoft Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2 � Apple Mac OS X � Linux and UNIX
